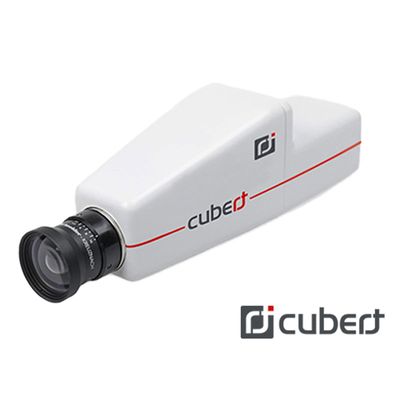

Bodkin - Model Cubert FireflEYE V185 -Hyperspectral Video Camera
The FireflEYE 185 is the workhorse of Cubert’s hyperspectral snapshot cameras. With a weight of less than 500g, it is designed for easy implementation onboard a UAV or for an easy-to-handle and flexible measurement experience in the field or laboratory.The 185 is available in four versions: two lightweighted versions suited for UAV-use, one with industrial housing and one with waterproof housing for underwater use. In lab use, the FireflEYE can be equipped with Close-Up Lenses, allowing a macroscopic scale view with a field size from only a few mm to cm. Attaching a Relay Lens to the FireflEYE provides full interchangeability for C-mount lenses. Mount the camera on your microscope or endoscope without the need of an additional calibration.
Wavelength range: VNIR 450-950nm(± 10nm), 125 bandsSpectral resolution: 8nm@532nm, sampling 4nmSpatial Resolution: 1000×1000 px panchromatic / 50×50 px spectral (2500 spectra per cube)Light-Weight Design: 490gStandard, Industrial and Waterproof Housing availableperClass Mira compatible
