FigSpec - Model FS2X series -Imaging Hyperspectral Camera

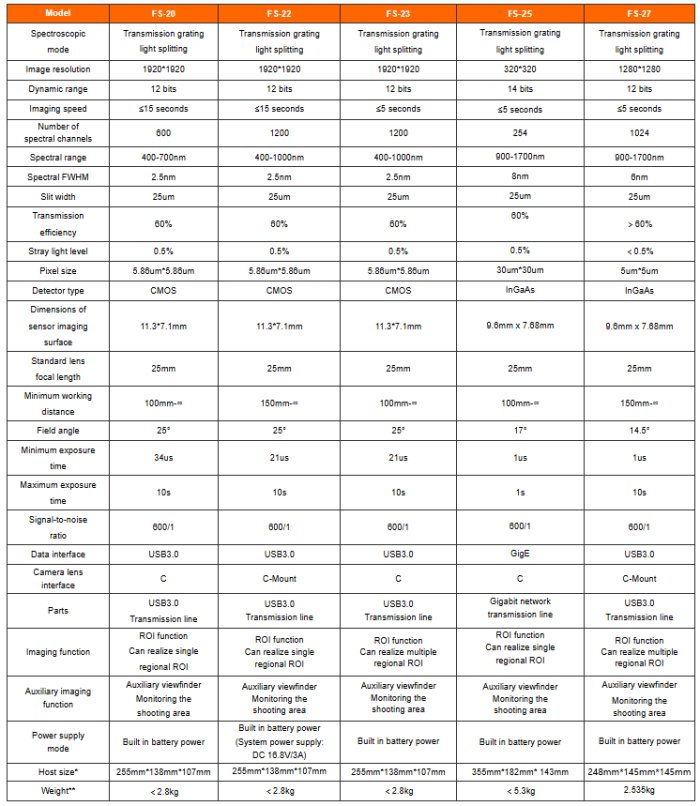

The Microscope Hyperspectral Measurement System from Hangzhou CHNSpec Technology is designed for various applications requiring precise spectral analysis. It operates across visible to shortwave near-infrared spectral ranges, offering a broad spectrum from 400nm to 1700nm. The system employs transmission grating for effective light splitting, achieving a wavelength resolution of better than 2.5nm in the visible range and up to 8nm in the near-infrared. Capable of capturing images with resolutions up to 1920x1920 pixels, it is equipped with a CMOS or InGaAs detector for different model variants. The imaging system supports high spectral channel counts and fast imaging speeds, ideal for applications such as environmental monitoring, agricultural analysis, and industrial detection. Its robust interface options include USB3.0 and GigE, making it suitable for diverse data transmission needs. Advanced functionalities like auxiliary imaging and ROI provide critical insights for detailed analysis.
