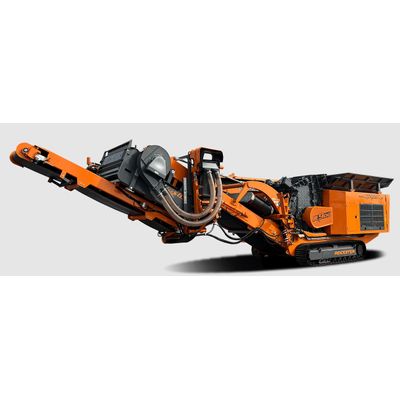

Model R 900d -Impact Crusher
36" x 29" 900 x 720 mm: Inlet opening. bis 240 t/h: depending on material. 63.100 lbs 28, 6 t: Weight incl. Screening System. Tier 4 Final / STAGE V Engine - 210kW / 285HP. Hydrostatic crusher drive for consistent throughput. DUPLEX-OPTION: Change the impact with the jaw crusher on one machine in less than few hours. Individually & hydraulically adjustable 2 swing beams. Crusher overload protection. The tracked impact crusher R 900d is based on Rockster`s hydraulic concept and guarantees profitable and flexible recycling of asphalt, concrete and any type of demolition debris. Moreover it is equipped with a powerful rotor, which makes it ideal for processing natural stone.
Central machine control with a fully authomatic monitoring
Sophisticated and easy-to-use multifunctional color display with various quick start functions (Different settings for a variety of applications)
Feed hopper
Hardox
Vibration chute with pre-screening
Zig zag (or bar screen)
Bypass
Easy switch with a hand lever
Vibrating hardox discharge chute
No wear of the main belt, especially beneficial when crushing steel-reinforced concrete
Sound-insulated engine compartment
Magnetic separator
Crusher overload protection
Dust supression system
On the chamber inlet and outlet
RS83 Screen box and RB75 return belt
Optimal option for production of 100% defined end-product
DUPLEX-System - 2 in 1
The hydrostatic drive system allows a clockwise or anticlockwise operation of the crusher so it is possible to install both impact and jaw crushing units onto the same basic frame.
Air Blower RVB1700
Efficiently separate light non-aggregates such as plastic, paper, textile, cardboard, wood, ythong, styrofoam, which results in a cleaner and higher quality final product.
Blow bar changing device
Lifting support for the exchange of the blow bars. Fixed on the crusher.
Air compressor
Ideal for cooler cleaning. Connected to machine hydraulic.
Reflector
Increases visibility that reduces risk of injury at the crushing site.
Central lubrication system
Fully automatic lubrication system with integrated electronic control.
Water pump
Water supply for dust suppression.
Belt weigh scale
Measuring of the performance on the discharge conveyor (t/h). Printer included.
Inlet opening: 900 x 720 mm / 36“ x 29“
Impact circle diameter: 1020 mm / 41“
Rotor equipment: 4 blow bars
Crushing ration: 1:10-1:50
Performance: up to 240 t/h / 270 st/h
Rotor speed (continuously adjustable): up to 850 rpm
Weight: 7.550 kg / 16,645 lbs
Drive: hydrostatic
Gap adjustment (adjusted on display): fully hydraulic
Dust suppression: At the crusher inlet & outlet
