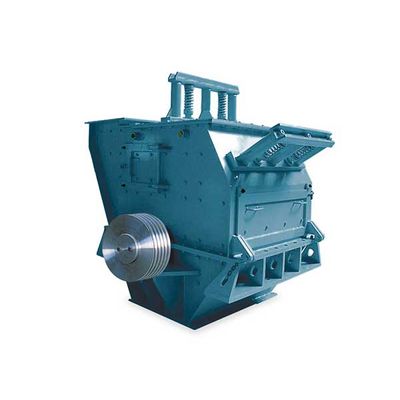

CIMMA - Model Type II/A-III-IV-V-V/S -Impact Crusher
Cimma Srl designs and constructs machines and plants for processing powders. Specializing in various fields including mining, ceramics, chemicals, and food processing, the company's Impact Crusher with swinging armor plates stands out among hammer mills. This crusher is ideal for producing granulates and sand from medium hardness rocks, and for primary crushing of materials such as clay, kaolin, refractory material scraps, bricks, grog, glass scraps, foundry slags, salts, lime, cement, and gypsum. The equipment is designed to deliver efficient crushing while accommodating varying material specifications and throughput requirements. Cimma's expertise extends to grinding, classifying, drying, and mixing, ensuring they provide comprehensive solutions tailored to the specific needs of different industrial applications. Each component is meticulously engineered to optimize performance and reliability in demanding processing environments.
Most popular related searches
impact crusher
wear-resistant steel plate
wear resistance
hammer mill
glass industry
primary crushing
scrap glass
industrial waste
hammer mill crusher
powder processing
Production of granulates and sand of medium hardness rocks.
Primary crusher for clay, kaolin, scraps of refractory material, bricks, grog, glass scraps, foundry slags, salts, lime, cement and gypsum.
- BUILDING INDUSTRY
- MINING INDUSTRY
- CERAMIC INDUSTRY
- GLASS INDUSTRY
- INDUSTRIAL WASTE
- LIME, GYPSUM, CEMENT
- BRICKS AND TILES INDUSTRY
- FOUNDRY
The Impact Crusher with swinging armour plates is classified among hammer mills but, in comparison with these, it offers the following advantages:
- Less wear of armour plates and hammer
- Less production of fine powders
- Possibility of processing even moist raw materials without obstruction, as there is normally no grate
- Possibility of feeding large size raw materials (200÷500 mm)
- Casing of welded steel plate, fully protected by wear resistant steel plates
- Large rotor with 4 hammers, cast in wear resistant chromium alloy or manganese steel
- Very strong and compact construction
- Very easy maintenance
- Small overall dimensions
- Possibility of adjusting the size of the product by varying the position of the armour plates and the speed
- The machine cannot be obstructed by damp materials
- The crusher can be supplied with special bar grate to obtain products with controlled granulometry, only for dry materials
