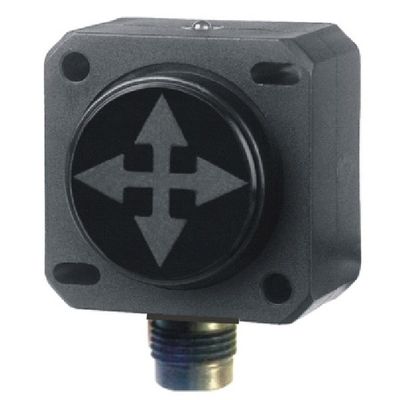

DIS - Model QG40N-KDXYh-030-AV-CM-UL -Inclination Sensor

Model: QG40N-KDXYh-030-AV-CM-UL, Sensor type: Inclination sensor, Number of axis: 2 axis horizontal mounting, Measuring range: Factory defaults: ±30°, Output: 0,5 - 4,5 V, Supply voltage: 6 - 30 V dc, Centering: Yes (2,5 V = 0°), range: ±5°, Resolution: 0,1°, Accuracy: 0,5° typ., Bandwidth: 0 - 10 Hz, Dimensions: 40x40x25 mm, Housing: Plastic injection molded housing (Arnite T06 202 PBT black), Connection: M12 5p male connector (Glass fibre reinforced grade, contacts CuZn pre-nickeled galv. Au), Temperature range: -40 .. +80 °C, Certification: CE, UL, Housing options: Plastic (std), Connectivity options: M12 (std), PUR cable, PVC cable, other cable lenghts, Interface options: 4-20mA, 0.5-4.5V, 0-5V, 0-10V, 1-9V, Certification options: CE (std), UL, cTUVus
