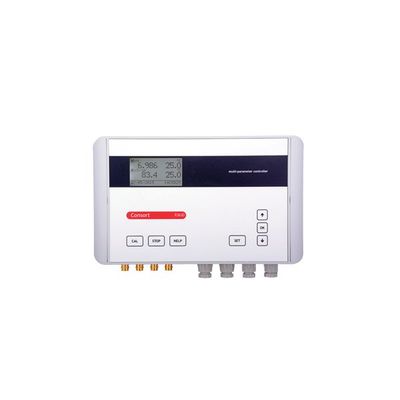

Consort - Model R3600 Series -Independent Programmable Control Systems
FromConsort bvba
The R3600 adds 2 (3 for R3630) independent programmable control systems to measurement system of C3000 series. It’s possible to connect up to 31 controllers with a computer. A programmable alarm function prevents overdosing of chemicals in the process liquid. R3614 and R3624 are versions with 1 extra DIN connector for 4-pole conductivity electrodes.
Most popular related searches
electrochemistry controller
conductivity electrode
chlorine-free
automatic monitoring
electrochemistry
chlorination
- Gold Plated BNC
- 2 Multiparamter Channels
- 2 (3) Independable Control Systems
- Control types
- proportional
- on/off
- Safety Features
- Stop control without stopping measurements
- Automatic Resume
- Washing Program
- Programmable alarm
- Pre-programmed standards
- pH: 1.68, 2.00, 4.00, 4.01, 6.87, 6.99, 9.18, 9.21, 10.01, 12.00, 12.45 (at 25°C)
- Conductivity: 1413 μS/cm, 12.88 mS/cm, 111.8 mS/cm (at 25°C)
- No interference between electrodes
- Stability algorithm with intuitive indicator
- Selectable resolution
- Capacitive compensation
- Galvanic isolated RS485 interface
- Galvanic isolated 4-20mA outputs
- High Accuracy
- Free software
- Open Communication Protocol
- Specifications depending on model
- Measurement Channels 2 (R3630 3)
- Temperature Channels 2 (R3630 1)
- Controls 2 (3)
- Solid State Relays 4
- pH -2.000...+16.000 pH
- mV ±2000.0 mV
- Ion 0.01 ng/l...100 g/l
- Conductivity 0...2000 mS/cm
- Dissolved oxygen
- 0...60.00 mg/l
- 0...600%
- Free chlorine 0...10 mg/l
- Air pressure 600...1300 hPa
- Temperature -5.0...+105.0°C
- Digital output RS485
- Analogue output 4..20mA
- Warranty 36 months
- Made in Belgium
