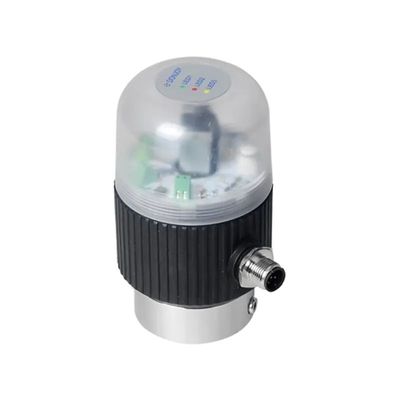

Inditop Valve Indication Unit
DONJOY IndiTop Valve Indication Unit is used to provide LED indication of the valve’s position and status by means of an electronic signal. It’s compatible with most PLC (programmable logic controller) automation systems. It senses the valve’s position and sends feedback signals to the PLC to indicate whether the valve is open, closed, or outside of those two set positions. Mounted on top of all pneumatic valves e.g. pneumatic butterfly valves, ball valves, diaphragm valves, angle seat valves, globe valves, shut off diverter valves, mixing proof valves, etc.
Output: Digital signal output DC24V+ (PNP) and analog signal 4-20mA
Display: with 3 colours LED lights
Power supply: DC 24V ± 10%
Protect class: IP67
Application: Mounted on top of all pneumatic valves,e.g. pneumatic butterfly valves, ball valves, diaphragm valves, angle seat valves, globe valves, shut off diverter valves, mix proof valves, etc
Feedback Output: Digital signal output DC24V+ (PNP) and analog signal 4-20mA
Power supply: DC24V ± 10%
Positioning accuracy option ±0.2 mm, ±0.5 mm,±1 mm(default), ±2 mm, ±3 mm
Electrical protection rating: IP67
With Easy Setting: One-button auto-tuning function
Display: with 3 colours LED lights
Green LED: indicates that the valve is open
Red LED: indicates that the valve is closed
Yellow LED: indicates the third (middle)（ Example Mixproof valve）
Red LED light flickers: indicating it doesn’t reach target position or valve position is deviated by pipeline pressure etc.
