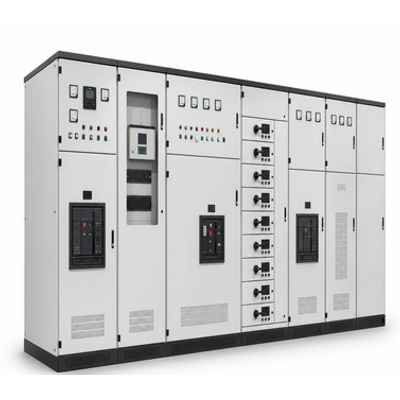

Xinhuan - Model 11 kV -Indoor High Voltage Electrical Control Cabinet

Technical Highlights

• This product combines structured cabinet design, practical electrical coordination, and project-specific configuration flexibility. It is suitable for power systems that need reliable switching or control performance, organized maintenance access, and scalable options for monitoring, communication, and protection.

Optional Configurations

• Rated current and short-time withstand current
• Protection relay brand and function package
• Incoming/outgoing feeder arrangement
• Automation and communication interface
• Cabinet dimensions, finish, and busbar layout
• Accessory package and interlock scheme
• Color, nameplate language, and document package
• Ambient temperature, altitude, and installation condition adaptation

• Utility feeder control systems
• Substations and transformer stations
• Industrial plants and process power systems
• Urban distribution networks
• Renewable power distribution and collector systems

• Designed for medium-voltage feeder control, switching, and protection functions
• Structured cabinet configuration suitable for substations, utility feeders, and industrial power systems
• Available with project-specific rated current, protection relay, and interlocking options
• Supports flexible busbar and feeder configuration according to application requirements
• Indoor enclosure design with practical maintenance and operating access
• Suitable for IEC or project-based export specification packages

• Rated Voltage: 11 kV
• Frequency: 50 Hz / 60 Hz
• Phase: Three Phase
• Structure Type: Electrical control cabinet
• Insulation Type: Air insulated
• Standard: IEC / GB / customized project specification
• Installation: Indoor / outdoor according to enclosure design
• Application: Distribution substations / industrial plants / building electrical systems
