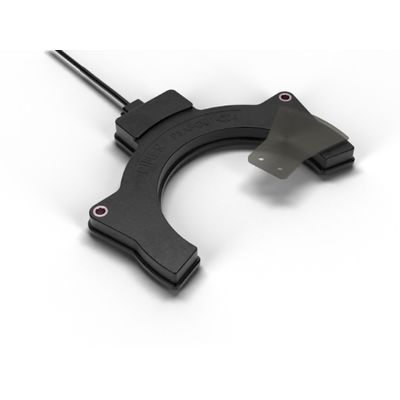

PIHER - Model PSAI -Inductive Angular Arc Position Sensor
Piher Sensing Systems manufactures the Inductive Arc Position Sensor, a sensor designed for robust applications such as tractors, excavators, and loaders. These sensors employ inductive technology, eliminating reliance on magnets, and instead, detect the position of a solid metallic target. This allows seamless integration into existing machinery structures. The sensors achieve high accuracy and feature IP67 and IP69K ratings for excellent sealing and high-temperature resistance, making them well-suited for harsh environments typical of off-highway uses. The arc design facilitates easy assembly and calibration, contributing to cost-efficiency in manufacturing. Measuring in a compact and low-profile package, options are available for custom mechanical design, programmable transfer functions, various output protocols, as well as redundancy levels, with CAN protocol support for simple outputs.
Piher Sensing Systems’ Inductive Arc Position Sensors are conceived for heavy-duty applications such as tractors, excavators and loaders. Inductive sensors do not depend on magnets, but detect the position of a solid metallic target that can easily be integrated into the existing machinery structure.
In addition to the sensors’ excellent accuracy, IP67 and IP69K sealing and high temperature tolerance make these absolute position sensors an excellent choice for harsh environments typically found in off-highway applications.
The arc design enables a simple and fast assembly and calibration process at the manufacturing line, leading to additional cost savings during the production process.
True touchless operation
Without any internal or external gears or linkages the sensor is easily assembled and calibrated and free from wear and tear over lifetime.
Immune to magnetic stray fields
No shielding required as inductive technology is not affected by electromagnetic stray fields.
Unlimited mechanical life
The separation of electronics and magnet module allows for a virtually unlimited lifetime independent of number of revolutions.
Compact and low profile package
The sensor target can be integrated into the existing application, and the sensor itself comes in an exceptionally compact and low profile package.
Made for harsh environments
The rugged package protects the sensor from dust, moisture, vibration and extreme temperatures for usage in the most demanding environments.
Adaptable to your requirements
Custom mechanical design, programmable transfer function and switch outputs as well as different output protocols and redundancy levels available.
