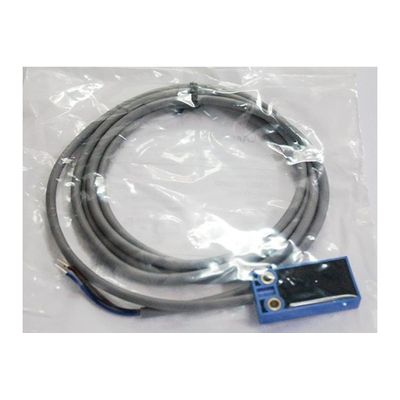

LANBAO - Model LE50 Square Series -Inductive Position Sensor
LE50 Square series inductive position sensor 5mm sensing distance DC with CE. Non contact detection,safe and reliable, ASIC design, Perfect choice for metallic targets detection.
Most popular related searches
- Mounting : Flush Non-flush
- Rated distance [Sn] : 5mm 8mm
- Assured distance [Sa] : 0…4mm 0…6.4mm
- Dimensions : 10*25*50mm
- Output : NO/NC (depends on part number)
- Supply voltage : 10…30 VDC
- Standard target : Fe 25*25*1t Fe 25*25*1t
- Switch-point drifts [%/Sr] : ≤±10%
- Hysteresis range [%/Sr] : 1…20%
- Repeat accuracy [R] : ≤3%
- Load current : ≤200mA
- Residual voltage : ≤2.5V
- Current consumption : ≤10mA
- Circuit protection : Short-circuit, overload and reverse polarity
- Output indicator : Yellow LED
- Ambient temperature : -25?…70?
- Ambient humidity : 35-95%RH
- Switching frequency [F] : 700 Hz 500 Hz
- Voltage withstand : 1000V/AC 50/60Hz 60s
- Insulation resistance : ≥50MΩ(500VDC)
- Vibration resistance : 10…50Hz (1.5mm)
- Degree of protection : IP67
- Housing material : PBT
- Connection type : 2m PVC cable
