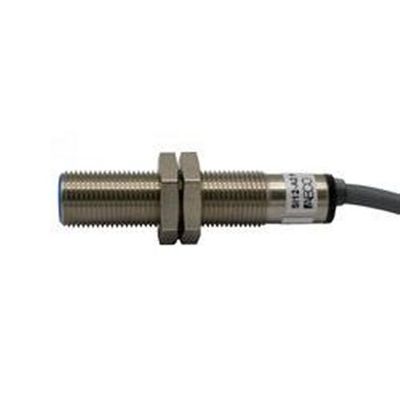

AECO - Model I12000001 SI12-A2 NC -Inductive Sensors
FromAECO S.r.l.
Electrical data: Power Type : AC. Operating voltage [V] : 20 ÷ 250. Insulation class : III. Go out; Function : NC. Maximum voltage drop [V] : < 6. Maximum output current [mA] : 300. Minimum output current [mA] : 5. Maximum starting current [A] : 1.5. residual current [mA] : < 1. Maximum working frequency [Hz] : 12.
Most popular related searches
- Detection range
- Nominal operating distance-Sn [mm] : 2
- Actual operating distance-Sr [mm] : 2 ±10%
- Operating distance-So [mm] : 0 ÷ 1.62
- Accuracy and Drift
- Correction factor : Stainless steel: 0.9 - Brass: 0.5 - Aluminum: 0.4 - Copper: 0.4
- Hysteresis [%Sr] : < 10
- Switch point drift [%Sr] : -10 ÷ +10
- Repeatability [%Sn] : <3
- Environmental conditions
- Temperature limits [°C] : -25 ÷ +70
- Degree of protection : IP65-IP66-IP67
- Signaling and control elements
- Report : Output switching status - 1 x LED: Yellow
- Mechanical data
- Body : Threaded type
- Thread definition : M12x1
- Dimensions [mm] : M12x1 - L=60
- Materials : Body: Nickel-plated brass - sensitive area: blue POM - Fixing rings: Nickel-plated brass
- Assembly : Shielded
- Weight [g] : 80
- Electrical connection
- Cable : 2m - PVC/PVC - 2 x 0.25mm²
- Compliance with Standards/Directives
- Compliance with directives : 2014/30/EU - Electromagnetic Compatibility Directive (EMC)
- 2014/35/EU - Low Voltage Directive (DBT)
- Regulatory compliance : EN60947-5-2 - Product standard
