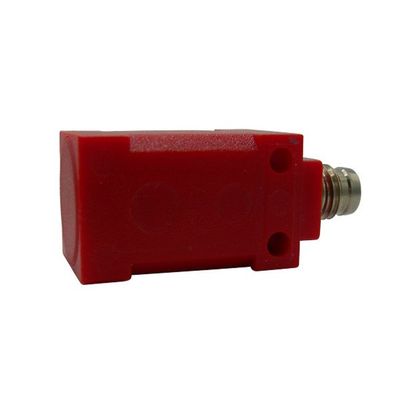

AECO - Model SIP000004 SIP17-CE5 NPN NO H1 -Inductive Sensors
FromAECO S.r.l.
Electrical data; Power Type : Direct current. Operating voltage [V] : 10 ÷ 30. Current consumption [mA] : < 15mA @ 24Vdc. Insulation class : III. Reverse polarity protection : Present.
Most popular related searches
- Go out
- Electric model : NPN
- Function : NO
- Maximum voltage drop [V] : < 1.8
- Maximum output current [mA] : 200
- Maximum working frequency [Hz] : 1000
- Short circuit protection : Present
- Overload resistance : Present
- detection range
- Nominal operating distance-Sn [mm] : 5
- Actual operating distance-Sr [mm] : 5 ±10%
- Operating distance-So [mm] : 0 ÷ 4.05
- Accuracy and Drift
- Correction factor : Stainless steel: 0.9 - Brass: 0.5 - Aluminum: 0.4 - Copper: 0.4
- Hysteresis [%Sr] : < 10
- Switch point drift [%Sr] : -10 ÷ +10
- Repeatability [%Sn] : <3
- Environmental conditions
- Temperature limits [°C] : -25 ÷ +70
- Degree of protection : IP65-IP66-IP67 (depending on the connector)
- Signaling and control elements
- Report : Output switching status - 4 x 90° LED: Yellow
- Mechanical data
- Body : Parallelepiped
- Dimensions [mm] : 17x31x17
- Materials : Body: red PVC - sensitive area: red PC
- Assembly : Not screened
- Weight [g] : 25
- Electrical connection
- Connector : Type H1 - M8X1 - Gold contacts
- Compliance with Standards/Directives
- Compliance with directives : 2014/30/EU - Electromagnetic Compatibility Directive (EMC)
- Regulatory compliance : EN60947-5-2 - Product standard
