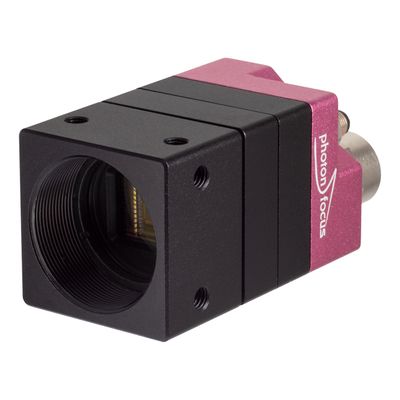

PhotonfocusModel MV0-D1280-O01-G2 -Industrial Camera with PYTHON1300 CMOS Sensor

SHARE
The MV0-D1280-O01-G2 series industrial camera by Photonfocus integrates the ON Semiconductor PYTHON1300 CMOS image sensor, which is engineered to perform optimally under low-light conditions. This camera model features the GigE Vision interface, facilitating high-speed data transfer and connectivity. It is specifically designed for high-speed industrial imaging applications where the global shutter allows for quick exposure times in the microsecond range, making it adaptable to fast-moving scenes or rapidly changing environments. The camera supports both standard monochrome and near-infrared (NIR) imaging, increasing its flexibility to meet various imaging needs. An essential aspect of its design is the focus on demanding industrial tasks, such as quality inspection and automation processes where precision and speed are crucial. The accompanying software development kits (SDKs) offer broad compatibility with Windows and Linux operating systems, and provide comprehensive tools for development and integration.
Most popular related searches

The camera series MV0-D1280(I)-O01-G2 is based on the ON Semiconductor PYTHON1300 CMOS image sensor. The PYTHON1300 CMOS image sensors are optimized for low light conditions and are available as standard monochrome and as NIR (I) version. The cameras have the GigE interface (GigEVision).

These cameras focus on demanding applications in industrial image processing. They are optimized for low light applications. Due to the global shutter, even high-speed applications with exposure times in the µs-area are possible.

Sensor: ON Semiconductor, PYTHON1300
Frame rate: 85fps
Optical format: 1/2"
Lens mount: C-Mount
Sensor Resolution: 1280 x 1024
Pixel size: 4.8μm x 4.8μm
I/O Input: 2x Opto-isolated
I/O Output: 1x Opto-isolated
Dimensions: 30 x 30 x 54.9mm³

  • Configurable region of interest (ROI)
  • Up to 8 regions of interest (MROI)
  • Decimation in y-direction
  • 2 look-up tables (12-to-8Bit) on user-defined image region (Region-LUT)
  • Constant frame rate adjustable by software
  • Crosshairs overlay on the image
  • Temperature monitoring of camera
  • Camera informations readable over SDK
  • Ultra low trigger delay and low trigger jitter
  • Extended trigger input and strobe output functionality
  • Status line in picture
