Alimak - Model SE-H -Industrial Construction Elevators
The Alimak SE-H range of industrial elevators is a reliable solution designed to handle high-capacity vertical transportation of passengers and freight in a variety of challenging environments. With a modular design offering a wide range of car size configurations and door options, the SE-H series is adaptable to specific industrial needs. Payload capacities are substantial, with single mast systems supporting up to 3,300 kg and twin mast systems accommodating up to 7,000 kg. This elevator range is optimized for high-performance even under demanding conditions and features functionalities such as forklift truck loading. The SE-H elevators do not require a machine room or shaft, making them versatile for different installation contexts. Furthermore, genuine spare parts and a comprehensive range of maintenance services are available to ensure ongoing optimal performance, further extending the lifecycle of the equipment through connectivity and asset management solutions. Application engineering services include configuration drawings and detailed calculations for strength, ground load, and anchor force.
Industry mover and shaker
An install base of over 23,000 Alimak rack & pinion solutions across a broad spectrum of industries around the world, has given us a unique and extensive engineering knowledge gained from each individual installation.
Alimak elevators daily demonstrate their ability to withstand the toughest challenges, providing reliable access, anytime and anywhere needed, from silos, chimneys, and boiler houses, to warehouses, container cranes, underground shafts, hull columns, and derrick towers.
The enhanced efficiency delivered by the Alimak SE-H line stems in part from the unique modular design of the cars that provides 9 different car sizes within the standard range. All elevators are based on a variety of wall panels made of the Alimak self locking, aluminium profiles. These wall panels meet different elevator needs, and create adaptable floor and roof configurations.
- Benefit from a highly useful variety of car sizes within the standard range, varying from the smallest providing 4 m2 floor space to the largest elevator car delivering 6 m2floor area
- Leverage a payload capacity of up to 3,300 kgon a single mast
- Make full use of the flexible car door solutions that enable larger loads, optimal use of space and more flexible and easier loading

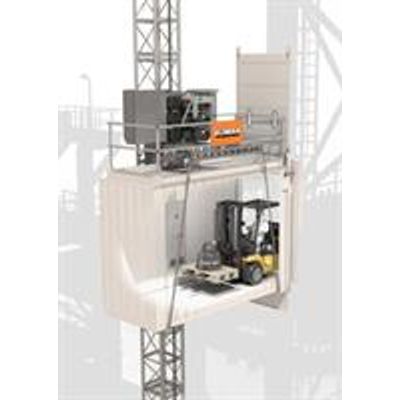

- Exploit the forklift truck loading functionality that means even a forklift or a pallet jack can be transported to different levels
- Plus, save time and money by removing the need for machine rooms and costly shafts
- Fully compliant with all current US and EU regulations
- Payload capacity 2,100–3,300 kg (increased capacity on request)
- Loading classifications (ANSI) Class A, B, C1, C2, C3
- Travelling speed 0.52 or 0.7 m/s
- Max. lifting height 125 m (increased lifting height on request)
- Elevator car sizes 9 car sizes available
- Car width (internal) 1.56 m or 1.82 m
- Car length (internal) 2.60 m – 3.90* m
- Car height (internal) 2.35 m
- Motor control Frequency control (FC)
- No. of motors 3
- Power supply range 380–500 V, 50 or 60 Hz, 3 phase
- Type of mast Square (A-50), tubular steel with integrated rack
- Length mast section 1.508 m
- Standard compliance EN 81-20/-50, Pr EN 81-7, ASME 17.1-2010 part 4.1, ASME 17.1-2010 part 5.7 (up to 1,000 lbs), AS 1735.9, AS 1170, and the technical regulation of the Eurasian Economic Union TR CU 010/2011. Other standards on request.
- Certificates Lift Directive Type certificate, GOST R 53780-2010 certificate and TRCU 010/2011 certificate
- Durable Durable Design For Tough Industrial Use For Tough Industrial Use
- No Shaft Needed Due To The Rack And Pinion Technology
- No Machine Room Required, Compact Drive Unit On Top Of The Car
- Suitable For Both Indoor And Outdoor Installation
- Payloads Of 3,300 Kg On Single Mast And 7,000 Kg On Twin Mast
- Variety Of Car Sizes Within The Standard Range
- No Lifting Height Limit
- Flexible Car Door Solutions
- Forklift Truck Loading Functionality
- Stiff And Strong Car Frame
- Safe Descent During A Power Outage
- Alimak Safety Device
