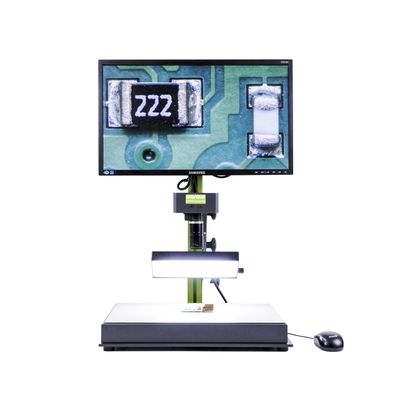

SANXO - Model Scope HD U10 -Industrial Digital Microscope
The SANXO Scope HD U10 is an industrial digital microscope that combines advanced imaging technology with ease of use, making it ideal for inspecting opaque and nontransparent samples. It features a 20.5 MP IDS camera with a high-quantum efficiency Sony sensor, enabling true color fidelity and crystal-clear images. The microscope offers digital zoom functions, autofocus options, and real-time image enhancement on a full HD monitor. The setup includes custom lens configurations such as telecentric, macro, and 360-degree lenses to accommodate various applications and measurements. The system's software suite provides image stacking, 3D modeling, HDR imaging capabilities, and Gerber CAD visualization for PCB inspection. Offering adjustable ergonomic design, measurements in pixel or real-world units, and overlay graphics, the SANXO Scope HD U10 enhances traditional microscopy with digital processing advantages. The microscope's construction includes durable materials like painted metal and aluminum profiles, ensuring robust use in technical environments.
- Sharp live image, high resolution
- Easy to use with a single mouse
- Fast focusing, dimensional measurements and 3D imaging
- One click documentation and QR or DTM identification
- Image and Data saving on SSD or on network drive
The new industrial digital microscope model U10 is equipped with the new 1”, 20.5 Mpix IDS camera with SONY sensor, which gives outstandingly good true colors and it has nearly 80% quantum efficiency. Using the special digital zoom function with the mouse wheel, the zoomed image is equally very sharp and clear on the full HD resolution monitor thanks to the very good 20.5 Mpix USB3 camera from IDS-Imaging GmbH and the advanced software features.
In use, the application offers basic functionality such as digital zoom and pan, real-time image enhancement and image saving (local/remote device). Using the calibration feature, distance between two points displayed on the screen can be measured using either pixel units or calibrated real-world units. The basic and advanced functions as well as the settings can be accessed by right-clicking anywhere on the screen (see image below).
SANXO – Scope HD U10 is a reflected light microscope, because it uses the reflected beam of the incident light. Ideal to inspect opaque samples, anything that is nontransparent. The SANXO digital microscope performs all the tasks of a traditional compound microscope with the benefits of digital image processing.
Auto-Focusing of the industrial digital microscope
The system provides two focusing options, which can be selected and configured in the Settings -> Autofocus tab. In Classic mode, the focusing is triggered by a double-click on the target image part. Fast and accurate presets are available. In Continuous mode the focusing takes place automatically in the center of the screen.
