Estone Technology - Model PPC-CXX27 Series -Industrial Panel PC
- Intel® Alder Lake-U processor
- Front panel IP65
- Surface coating for AG/AF
- RS232/RS422/RS485 setting by BIOS
- Remote power switch
- Strong expandability for RS232 or CAN&DIO or POE
- DC 12~36V wide voltage input, support RVP/SCP/OVP/OCP

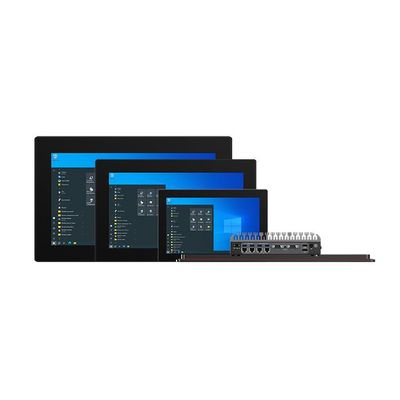

- Modular design of the host and display for easy assembly and disassembly
The device supports installation of M.2 NVMe SSDs, M.2 WiFi modules, and optional M.2 5G communication modules, with standard configurations including four USB 3.2 ports, two RS-232 serial ports, and four Gigabit Ethernet ports. Through expansion cards, it enables integration of POE power supply, GPIO interfaces, and CAN bus interfaces,establishing a multi-functional expansion architecture tailored for industrial automation and IoT deployments to address diverse hardware configuration requirements in complex application scenarios.
The PPC-CXX27 Series supports the following 12th Gen Intel Core ™ i7/i5/i3 (Alder Lake-U) processors, featuring up to 10 cores (2 Performance-cores + 8 Efficiency-cores) and 12 threads.With its hybrid architecture, low power consumption, and high scalability, the PPC-CXX27 Series is an ideal choice for small to medium-sized industrial equipment.
Engineered with a modular capacitive touchscreen and fanless operation, this Industrial Panel PC rugged reliability (IP65-rated waterproof/dustproof ) for mission-critical applications in smart manufacturing, renewable energy, and environmental sensing sectors.
Different configurations can be flexibly selected according to customer needs without changing the original design. Upgrades or maintenance can be quickly achieved by simply replacing the motherboard module.
Featuring flexible mounting configurations including panel-mounted and VESA-compliant installations, it delivers adaptable deployment capabilities across diverse intelligent manufacturing environments.

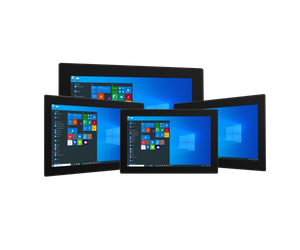

This series offers screen sizes of 12.1, 15, 15.6, 17, 18.5, and 21.5 inches, providing flexibility for various industrial applications. The screens support LVDS and EDP technology. LVDS ensures a lifespan of up to 50,000 hours, ideal for long work sessions. The screens also feature 10-finger multi-touch capability for intuitive use.
It's been tested according to IEC 60068-2-64 and IEC 60068-2-27 standards, including random vibration tests and mechanical impact tests. These tests show that the device can stand up to vibrations and shocks really well. Also, it has CE and FCC Class A certification, which means it performs great in terms of electromagnetic compatibility and safety. All this makes it perfect for industrial automation and tough environments. dustproof/water resistant IP65 front panel.
