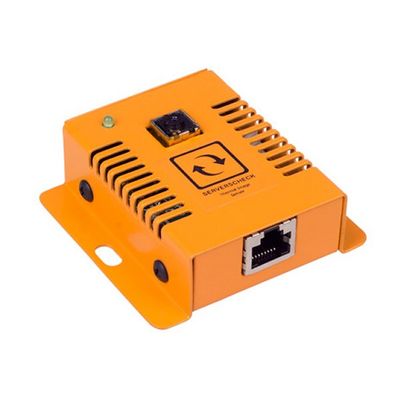

InfraSensing - Infrared Thermal Image Sensor
A regular temperature sensor provides you with the temperature of the air surrounding the sensor. The thermal image sensors provide you with the temperature of the objects & equipment it sees. The world`s first SNMP & Modbus (TCP & RTU) thermal image sensor that tells you the temperature of what it actually sees. From 192 up to 19200 temperature measurement points in one image, analysed every 2 seconds. Up to 5 thermal image sensors supported per SensorGateway (BASE-WIRED) with the optional SensorHub (EXP-HUB)
A picture is worth a thousand words
Animated image of different thermal image sensorsA traditional temperature sensor tells you what it feels. However a thermal imaging sensor tells you the temperature of anything it sees; up to a distance of 50 yards or 45m.
One image can contain 192 temperature measurement points (Extra-Small version) , 768 (Small), 4800 (Medium) or 19200 points for the Large version.
The thermal image is refreshed every 2 seconds. Minimum and maximum temperature data is available to industrial and IT automation platforms via Modbus TCP, RTU (RS485) or SNMP.
Switchgear & electrical panels monitoring
Traditionally switchgear is monitored using contact based temperature sensors. They report the temperature at the point where the sensor is mounted. Switchgear also needs to be periodically checked using thermal camera guns. One hopes to catch an issue when it just appears and that it doesn`t show up just after a periodic scan.
With our patented thermal image sensors a user can monitor switchgear and electrical panels 24x7 in an automated way. No need for individual temperature sensors.
