Supercombinata - Model Basic -InLine Boring Machine
FromElsa s.r.l.

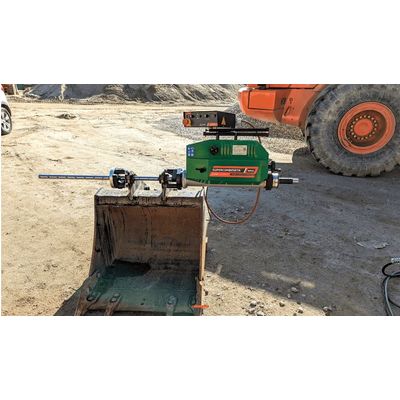

The Supercombinata BASIC is the entry-level solution of the Supercombinata series, with professional performance and at an affordable price. With its standard equipment, the machine is able to perform inline boring operations in the range from Ø 22 mm up to 120 mm, ideal for repairs in the field of earthmoving and for simple applications. With the BASIC 250 kits the machine can carry out inline boring and overlay welding up to Ø 250 mm and, with the other additional kits, external turning, facing of orthogonal planes and creation of seeger ring seats up to Ø 250 mm.
Most popular related searches
DIAMETERS
- Boring bar diameter: ø 20 x 1800 mm / ø 40 x 1500 mm
- Line boring: ø 22 – 120 mm
- External turning: Extra kit
- Internal welding: Extra kit
- Facing: Extra kit
ROTATION MOTOR
- AC motor: Single phase
- Power at rated speed: 1800 W
- Output torque at the bar: 290 Nm with 120 rpm
- 1° speed: max 115 rpm (145 Nm)
- 2° speed: max 400 rpm (45 Nm)
FEED MOTOR
- Gear motor: DC
- Power at rated speed: 90 W
- Max speed: 11 rpm
- Feed system: Electromechanical
- Feed: Manual/Automatic
LONGITUDINAL STROKE
- Unlimited: With 350 mm pitch
ELECTRONIC CONTROL PANEL
- Voltage: 230 V (50Hz)
- Main switch: Available
- Emergency switch: Available
- Inverter feed: RH/LH
- Inverter rotation: CW/CCW
- Speed regulator: Rotation/Feed
- Electrical absorption: 2000 W
- Control panel 110/120 V: Upon request
- Qty 1 - Main unit
- Qty 1 - Boring machine stand
- Qty 1 - Electronic control panel
- Qty 1 - Control panel holder
- Qty 1 - Cable control panel/machine
- Qty 1 - Power cable
- Qty 1 - Boring bar ø 20x1800 mm
- Qty 1 - Boring bar ø 40x1500 mm
- Qty 1 - Special tool holder RH ø 10x20 mm
- Qty 1 - Tool holder RH ø 10x30 mm
- Qty 1 - Tool holder LH ø 12x60 mm
- Qty 1 - Box with 10 cutting inserts
- Qty 1 - Main bar support
- Qty 1 - Additional support
- Qty 2 - Bushing
- Qty 2 - Main reduction bushing
- Qty 2- Additional reduction bushing
- Qty 1 - Rotation reduction bushing
- Qty 1 - Extension
- Qty 2 - Centring bushing ø 20 mm
- Qty 2 - Centring bushing ø 40 mm
- Qty 6 - Centring bracket
- Qty 6 - Centring bolts
- Qty 1 - Wrench
- Qty 1 - Screws and bolts
