Parsum - Model IPP 75-S -Inline Particle Measuring Probe

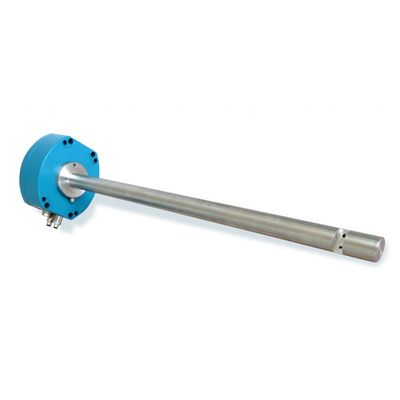

The IPP 75-S is the special probe for use in large and deep process areas, such as high-shear mixers. To this end, the probe features a new illumination concept as also used in the IPP 80-P pharmaceutical probe. This makes it possible to produce versions of the probe with almost any required length.

When used in conjunction with a measuring PC, it allows for the determination of particle size distribution (e.g., Q0, Q3) as well as the attributes of the distribution (x10, x50, x90, etc.) directly within the process.

It consists of a robust stainless-steel construction with sapphire windows to protect the optics from wear.

Its dimensions, measuring ranges and accessories make it compatible with all other probe models, so all of the accessories for process adaptation can also be used with the IPP 75-S.

Compressed-air-driven accessories, such as dispersers, ensure that the measuring volume and measurement optics are kept permanently free from contamination while also guaranteeing optimal adaptation to process and particle attributes. The probe is therefore also suitable for use in processes with damp and sticky particles. Using a disperser means that measurements can also be taken in processes with irregular particle movement, such as in fluidised beds, or processes with high particle loads, such as high-shear processes.

LEDs in the electronics housing and signals in the measuring software provide the user with information regarding the reliable functioning and operating status of the probe.

A complete measuring system consisting of the IPP 75-S with accessories for process adaptation, and a measuring PC with measuring program for particle searching and the calculation of all distributions. The measured results can then be made available to a higher-level control system via optional interfaces.

The IPP 75 S is the special probe for all processes in large and deep process containers and inaccessible areas without ATEX requirements in the fields of chemistry, foodstuffs and construction materials, etc., for fluidised beds, granulation, agglomeration, coating, spray drying, sieving, grinding and transport.

• IPP 75-S inline particle-measuring probe
• Particle size measurement range : 50 µm … 6000 µm
• Particle velocity measurement range : 0,01 m/s … 50 m/s
• Particle volume concentration : for particles <1 mm, up to approx. 12 vol.%
• for larger particles, up to approx. 30 vol.%
• Measuring rate : up to 20,000 particles/s
• Products : Powder, pellets, granulates, sprays, etc.
• Process temperature/pressure : –20°C to +100°C / <4 bar
• Material, in contact with product : stainless steel (L316), sapphire, epoxy resin
• Probe tube dimensions (L/D) : 380×25 mm (longer options possible)
• Electronics-housing dimensions (W/H/D) : 130 x 120 x 65 mm
• Electronics-housing temperature : -10…60°C
• Housing protection class : IP65
• Light source : Laser (laser class 1)
• Power consumption : 2W (typ.)
• Interfaces : Particle distributions and attributes as an ASCII file (Excel compatible), optional: 4–20 mA, TCP/IP, OPC

Process interface :

• D24 disperser : For high load / high fine content – particles up to 2000 µm, clearance 3.8 mm
• D12 disperser : As for D24, but also for larger particles >2000 µm, clearance 7.5 mm
• SZ11, SZ20 cleaning cells : With low load for cleaning the probe optics without diluting the flow of particles
• Compressed-air unit : Compressed-air supply for the probe when using dispersers or cleaning cells
• VS28 anti-wear guard : Tube sleeve with a reinforced hard-chrome coating with a hardness of 68–72 Rockwell
