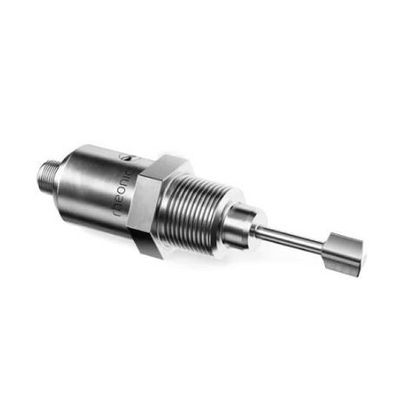

Rheonics - Model SRD -Inline Process Density Meter and Viscometer
Online, real-time fluid density meter with viscosity; Single instrument for simultaneous process density (specific gravity), viscosity and temperature measurement. Compact form-factor for simple installation. Real-time, stable, repeatable and reproducible measurements in Newtonian & non-Newtonian fluids. Measures kinematic and dynamic viscosity. All metal construction. Completely insensitive to mounting conditions. Operational to 500 bar and 300°C (7500 psi, 575°F). Threaded, flanged and sanitary process fittings. Easy to clean, no maintenance or re-configurations needed. Scale across multiple locations/installs without application re-engineering.
3-in-1 process instrument
Density meter, Viscometer and Temperature gauge all-in-one. Small form-factor robust device.
Repeatable, Reproducible
Use to monitor density and viscosity of Newtonian, non-Newtonian, Single and Multi-phase fluids
All metal probes
Hermetically sealed, metal-metal process sealing – no elastomer needed.
316L Stainless Steel
Hastelloy C22
Built-in fluid temperature measurement
Thermally compensated density and viscosity output.
- Fluid measurements
- Density Range :
- 0.2 - 4.0 g/cc
- 200 - 4000 kg/m3
- 1.67 - 33.38 lb/gal
- Density Accuracy :
- 0.01 g/cc (0.001 g/cc & higher accuracy available)
- Viscosity Range :
- 0 to 3,000 cP (standard)
- Wider range available
- Viscosity Accuracy :
- 5% of reading (standard)
- 1% & higher accuracy available
- Reproducibility : Better than 1% of reading
- Temperature : Pt1000 (DIN EN 60751)
- Operational conditions
- Process Fluid Temperature : -40 up to 300 °C (575°F)
- Ambient Temperature : -40 up to 150 °C
- Pressure Range : up to 7,500 psi (500 bar)
- Fluid Wetted Materials :
- 316L Stainless steel
- Hastelloy C22
- The rheonics density meter SRD measures viscosity and density by means of a balanced torsional resonator, one end of which is immersed in the fluid under test.
- Density of fluid is measured through the shift in resonant frequency of the resonator.
- The more viscous the fluid, the higher the mechanical damping of the resonator. By measuring the damping, the product of viscosity and density is calculated by rheonics’ proprietary algorithms.
- Density and viscosity of fluid is measured by the rheonics patented sensing and evaluation electronics and stable, high accuracy and repeatable readings are obtained based on rheonics’ proven gated phase-locked loop technology.
