Flowtef - Model ISV-B -Inline Sampling Ball Valves

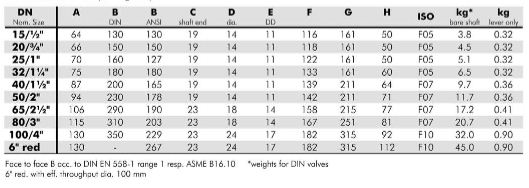

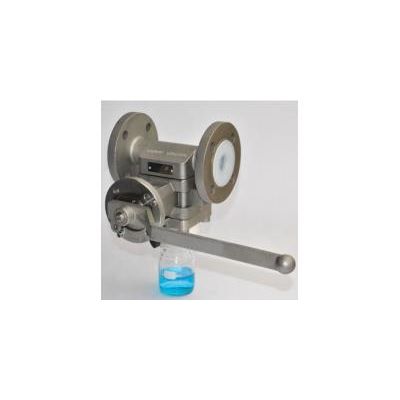

For safe and representative sampling of aggressive or even toxic liquids from pressurized pipelines or vessels, without any process interruptions. Inline Sampling Ball Valves ISV-B Series are available as DIN or ANSI valves, with standard handlever for 180° operation. The valves are distinguished by its dead-space-free design as well as the extremely short outlet way for the representative sample, even for viscous or solids-containing media. The sturdy bodies are made of stainless steel casting 1.4408 (CF-8M) or optional with resistant linings such as PFA or PFA-AS (anti-static)
