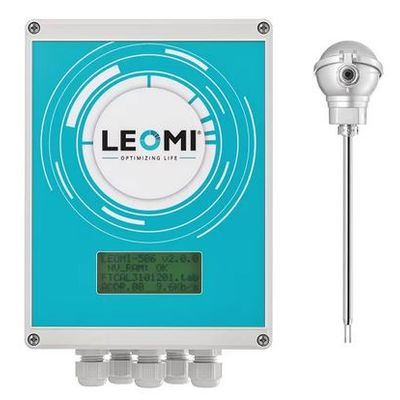

Leomi - Model 586 S -Insertion Thermal Mass Flowmeter
LEOMI-586 SS 316Ti is most preferred by Industrial, Environmental and Commercial customers for a variety of applications such as Compressed Air, Combustion Air, Aeration Air, Flue gas, Waste-gas, Landfill gases etc.
LEOMI-586 S Insertion Thermal mass flowmeter has been developed as a new Measuring system which combines separate analogue controllers for high resolution & very fast response together with a very new and high performance digital microprocessor controllers for long-term stability & very high absolute accuracy instead of a traditional drift prone Wheatstone Bridge for controlling over temperature(ΔT). This ensures guarantee stable electronic evaluation for Thermal (Calorimetric) Probes with excellent electrical characteristics.
SS 316Ti without Safety Head
Stainless Steel probes without safety head
SS 316Ti with Safety Head
Stainless Steel probes with safety head
HALAR® Coated
probes for highly corrosive gases at lower temperature
PFA Coated
probes for highly corrosive gases at higher temperature
- No moving parts
- Wide measuring ranges allow the detection of leakage & increases in consumption
- Measuring mass ?ow rate independent of pressure and temperature variation
- High accuracy throughout temperature ranges up to 400°C
- Operates in any positions
- Programmable pipe diameters from 15mm to 10000mm
- Probes with Ø=12mm & Length up-to 2000 mm available
- Circular, Square, Rectangular and other ducts mounting possible
- Easy Installation & maintenance
- Integration in data network with di?erent data converters possible
- In-built standard gas database for selection
- In-built terminal software with gas volume, gas mixture & insertion depth calculators
