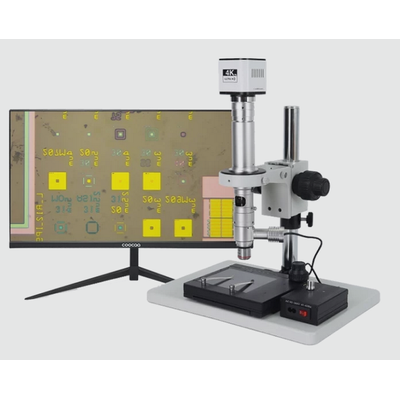

MCscope - Model MC-TZG5X-4KHU 1000X -Inspection Microscope for Microelectronics Quality Control
The MC-TZG5X-4KHU combines 4K imaging with versatile camera tools for electronics and semiconductor inspection. Ideal for failure analysis and quality control, this microscope offers high magnification, wide field of view, and advanced viewing flexibility for professionals in manufacturing and research.
Most popular related searches
- Advanced Coaxial Optical System
- 4K UHD Camera
- Built-in Professional Measurement System
- High-Quality Metallurgical Objective Lens
- Precision Mechanical Platform
- Enhanced Adjustable Coaxial Illumination
Advanced Coaxial Optical System
- High-definition coated beam-splitting lens with 0.7X–4.5X continuous optical zoom
- Equipped with 5X metallurgical objective lens for ultra-clear, wide-field imaging
- Electronic magnification range from 160X–1058X with uniform brightness and deep focus
4K UHD Camera
- 8 Megapixel sensor delivers real 4K resolution at 3840×2160P @ 60FPS
- Real-time autofocus keeps fine details consistently sharp
- Features include HDR, white balance, local zoom, image preview, and more
Built-in Professional Measurement System
- Includes 20+ on-screen measurement tools for industrial analysis
- Supports length, radius, angle, arc, area, and coordinate measurement
- Data can be saved via U disk; supports screenshot and magnification display
High-Quality Metallurgical Objective Lens
- Standard configuration: 5X achromatic lens
- Optional: 10X / 20X / 50X / 100X magnifications with full coating
- Flat field, long working distance, and excellent image sharpness
Precision Mechanical Platform
- Dual-layer XY mechanical stage: 187mm × 160mm with 60mm × 55mm travel range
- Focusing accuracy up to 0.002mm with 50mm vertical stroke for fine-depth adjustment
Enhanced Adjustable Coaxial Illumination
- Upgraded LED coaxial light with durable metal dimmer box
- Anti-corrosion, wear-resistant, and easy-to-operate rotary knob for brightness control
- Optical Magnification: 0.7X–4.5X adjustable continuous zoom
- Electronic Magnification: 160X–1058X continuous magnification
- Resolution: 3840 × 2160P @ 60FPS (4K UHD)
- Camera Pixel: 8 Megapixels
- Camera Output Interface: HDMI + USB high-speed output
- External Devices: High-definition HDMI display + Computer
- Auxiliary Objective Lens: 5X metallurgical objective
- Coarse and Micro Focusing: Fine adjustment value 0.002mm, focusing stroke 50mm
- Mobile Platform: XY-axis dual-layer mechanical stage 187mm × 160mm; mobile range 60mm × 55mm
- Camera Functions: Partial zoom in, preview, image flipping, magnification display, electronic zoom in/out, built-in measurement system, USB storage
