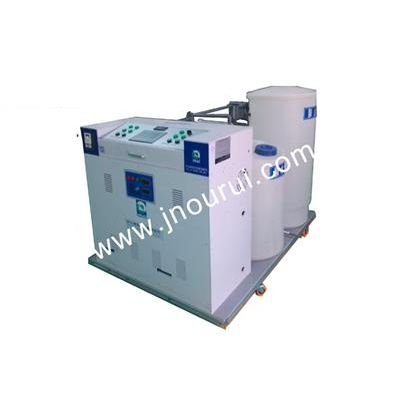

Ourui - Integrated Generation System

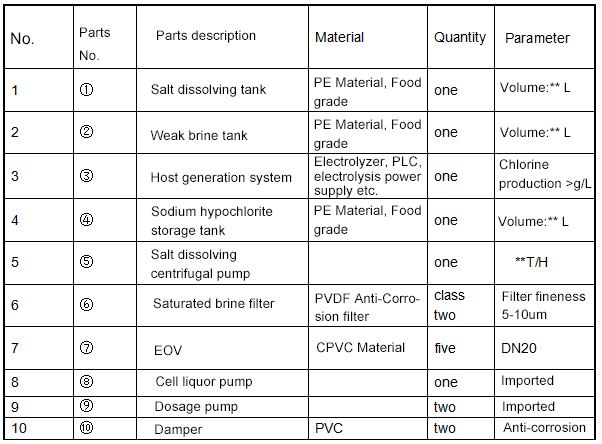

System Composition: Auto salt dissolving tank、Auto salt filtration、Auto saturated weak brine tank、Auto weak brine proportioning device、 weak brine tank、Weak brine deliver metering pump、Host generation system、Sodium hypochlorite storage tank、Auto control system、Auto sodium hypochlorite anti-corrosion metering pump 、Residual chlorine detecting (Optional)、Residual chlorine closed-loop feedback type automatic control unit.
Material: Brine or seawater, brine concentration: 2.5% ~ 3.0%.
It is used for drinking water disinfect, raw material inspection should comply with the national standard 《GB2721Hygienic standard for salt》.
Systematic parameter
- Input voltage：220VAC/ 50Hzwith grounding；
- Operating voltage：10～15VDC；
- Operating current：100～150.0ADC；
- Chlorine production：≥100g/h～500g/h
- Available chlorine content：≥5000ppm；
- Electrolyte：2.5%～3.0% weak brine；
- Dc power consumption：≤3.5KWh/KgCL；
Integrated System Description
In order to achieve economic space occupation, safety control,easy on operation, integrated system has been applied high integration density horizontal design, every units has been placed in one platform, PLC control system control the whole package of generation system by detected signal to achieve every unit work aromatically. In order to extend life span of electrolyzer, we have applied an unique patent - “Reverse Electrode”, it will switch the electrode from anode to cathode.
