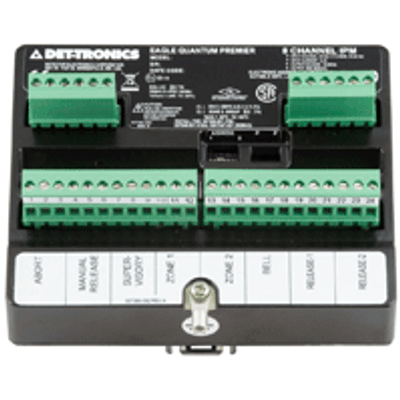

Eagle QuantumPremier - Model EQ3740IPM -Intelligent Protection Module (IPM)

In addition the module contains a unique “embedded logic program” that if enabled during configuration allows the IPM to perform local area protection in a “back-up mode” without controller interaction. The IPM utilizes eight pre-configured Input/Output (I/O) channels to perform its monitoring, supervison and mitigation functions.

On the input side, three supervised channels provide connections for an Abort station, a Manual Release station and a Supervisory device. Two additional input channels (zones) provide connections for “two-wire” conventional (non-relay based) smoke and heat detectors.

On the output side, three supervised outputs provide connections for a notification appliance such as a bell, horn or lamp and two releasing circuits for a main and reserve or secondary agent release.

Each channel on the module is provided with individual indicators for active and fault conditions.

The IPM can be mounted directly to a panel, or it can be DIN rail mounted utilizing the DIN rail adapter. System status can be determined using the trouble-shooting procedures, Det-Tronics’ Safety System Software (S3) and the status indicators on the module.

• The IPM resides on the EQP LON/SLC and reports to the EQP Controller on a periodic basis where its I/O can be utilized by the Controllers “static” and “user configured” logic.
• In addition, the IPM can be configured to utilize its own “embedded logic” to protect a local area should communications to the controller be interrupted due to maintenance or other issues.
• The IPM supports ANSI/NFPA Class A, Style 7 communications with the Eagle Quantum Premier Controller.
• To ensure reliable system operation, the module can continuously monitor its input and output circuits for open and short circuit conditions.
• The Eagle Quantum Premier Controller also continuously monitors the status of the IPM and each device connected to it.

Led Indicators

LEDs on the front panel of the IPM are provided for indicating device status conditions. The LED’s are tested upon power up to verify their operation. Red LEDs indicate an active condition. Yellow LEDs indicate trouble.

Mounting

The IPM is DIN rail or direct panel mountable for configurations requiring installation in NEMA or IP enclosures. DIN rail and mounting clip options must be specified at the time of order. Refer to the “Specifications” section for mounting arrangements and dimensions.

• Provides a pre-packaged single hazard protection solution to the Det-Tronics Eagle Quantum Premier™ system.
• Eight independent, supervised I/O channels.
• Individual channels have the pre-assigned functions necessary to deliver a single hazard protection solution.
• Supports two conventional “two-wire” smoke/heat zones including the ability to reset latched zones. Does not require the use of “relay bases”.
• Individual points are supervised in accordance with NFPA requirements for alarm/supervisory/other input styles, notification/releasing outputs.
• Individual channel LEDs indicate Active and Fault status.
• Provides remote I/O capabilities via LON/SLC.
• Panel or DIN rail mounting.
• Power LED display
• Plug-in wiring connectors.
• Meets the requirements of NFPA 72.
• RFI and EMI hardened (CE Marked).
