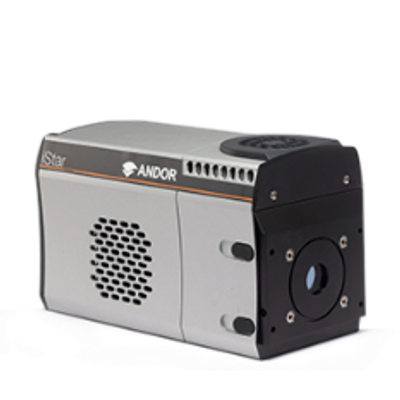

iStar - Model 312T -Intensified Camera

Building on more than 16 years of Excellence in the development of World-class, fast-gated Intensified CCD (ICCD) cameras, Andor redefines the standard of rapid, ns time-resolved Imaging and Spectroscopy with the introduction of the New iStar ICCD camera family.

Andor`s iStar ICCD camera series extract the very best from CCD sensor and gated image intensifier technologies, achieving a superior combination of rapid acquisitions rates and ultra-high Sensitivity down to single photon. Exceptional detection performances are accessed through high Quantum-Efficiency Image intensifiers, Thermo-Electric cooling to -40°C, 500 kHz photocathode gating rates and enhanced intensifier EBI noise reduction.

Low jitter, low insertion delay gating Electronics and nanosecond-scale optical gating provide excellent timing accuracy down to few 10`s of picoseconds, allowing ultra-precise synchronisation of complex experiments through iStar ICCD camera series comprehensive range of triggering options and input/outputs interface

• USB 2 0 connectivity
• Multi-MHz Readout speeds
• Integrated Digital Delay Generator
• Close-Coupled Gating
• Lowest insertion delay
• Fibre-optic coupling
• IntelliGate™
• Photocathode gating rate up to 500 kHz
• Cropped sensor mode
• High resolution Gen 2 and 3 intensifiers
• Thermo-Electric cooling down to -40"C
• Real-time control
• Photocathode dry gas purge port

• Industry-standard plug-and-play, lockable and rugged interface Seamless multi-camera control from single PC or laptop
• Rapid image capture for fast transition phenomena analysis
• With comprehensive software controls
• < 2 ns true optical gating speeds - ultimate temporal resolution
• As low as 19 ns
• High optical throughput without vignetting
• MCP gating for On/Off ratios >io8 in the UV
• Increased Signal to Noise ratio for high speed laser-based experiments
• Specialised acquisition mode to achieve fastest image acquisition rate
• Highest available intensifier resolution with OE > 50% and sensitivity options from 120 nm to 1.100 nm
• Ideal for low-light applications
• Intuitive Windows user interface for real-time acquisition optimization
• Provides further EBI reduction for low-light applications
