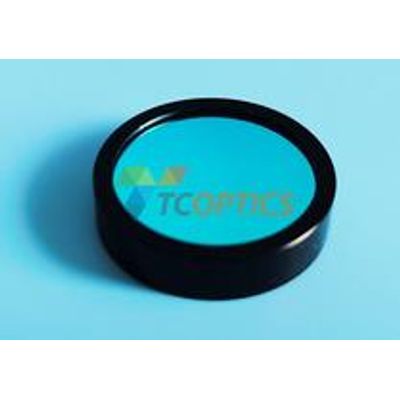

TC Optics - Interference Filter
An Interference Filter reflects one or more spectral bands or lines and transmits others, while maintaining a nearly zero coefficient of absorption for all wavelengths of interest. It consists of multiple thin layers of dielectric material having different refractive indices. There also may be metallic layers.
Most popular related searches
- Material Fused Silica
- Diameter Tolerance +0.0,-0.2 mm
- Ring Diameter (φ) 25.4±0.2 mm
- Ring Thickness (T) 6 mm
- Surface Quality 60-40 scratch and dig
- FWHM 10 nm
- Clear Aperture >φ20 mm
- Wavelength Tolerance ±2nm
- Mounting Material Black anodized aluminum
Note: Central wavelength from 200 nm to 1000 nm are available upon your request. FWHM 15nm, 20nm and 30nm are also available upon your request.
