Wuxi Yelin Machine Tool Co., Ltd.

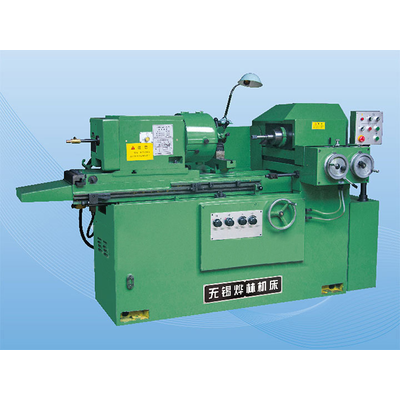

Yelin - Model MD2110C -Internal Grinding Machine
Feed and dressing movements are controlled by means of two independent driving systems.Size-metric grinding is adopted.Feed movement can be caried out both manually and hydraulically.
Most popular related searches
- Feed and dressing movements are controlled by means of two independent driving systems.Size-metric grinding is adopted.Feed movement can be caried out both manually and hydraulically.
- Because the machine is quipped with jumping mechanism,it is unnecessary to reset the tool after returning grinding wheelfor measurement or dressing.
- The machine is equipped with a hydraulic switch valve to ensure safety during loading and unloading workpieces
- A grinding spindle with 18,000 r/min.is optional for grinding bore diameter ranging from 20 to 50mm.
- An endface grinding device is provided on the top of the workhead.There is a hydraulic interlock system between the swivel of the endface grinding device and the longitudinal movement of the worktable.
