ACCU-SCOPE

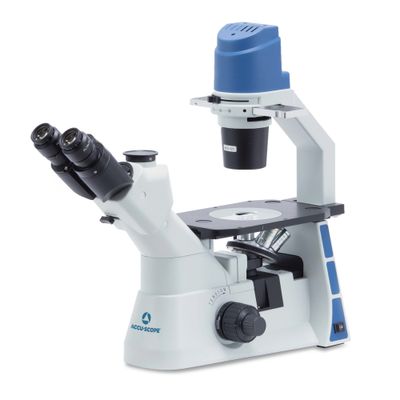

ACCU-SCOPE - Model EXI-310-PH -Inverted Microscope with Plan Phase Objectives

SHARE

Utilizing ACCU-SCOPE’s AIS optical system and LED illumination for both diascopic (transmitted) and epi-fluorescence imaging, the EXI-310 microscope offers brilliant, crisp images, enabling more efficient cell culture observation and digital imaging. The streamlined design and operation enhance its use for routine laboratory work, and the compact size allows the EXI-310 to easily fit into or next to a hood, or next to an incubator.

Most popular related searches

inverted microscope

fluorescence imaging

cell culture imaging

imaging microscopy

microscope objective

Stage: Fixed, plain stage, 160mm x 250mm with glass and aluminum insert plates; (Optional attachable mechanical stage right hand coaxial control, movement range 120mm x 78mm).
Condenser: ELWD Condenser N.A. 0.3, W.D. 72mm.
Slider: Pre-centered phase slider 4x/10x, 20x/40x annuli and BF position; secondary slider for filters for enhanced illumination techniques.
Stand: Cast alloy aluminum
Illumination: 5-watt LED with variable intensity control; LED bulb is rated for over 25,000 hours of continued use; universal power supply 1li-240v
Focusing: Coaxial coarse and fine focus with adjustable tension control; all brass gears.
Accessories: Green 550nm interference and ground glass, Dust cover and instruction manual.
Certification: ISO 9001: 2018 and ISO 14001: 2018; UL approved; CE anti-mold.
Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb
Microscope Dimensions (LWH): 515mm x 248mm x 473mm (without fluorescence)
Physical Weight: 21.5 lbs.
Shipping size: 28x25x13 inches
Shipping weight: 24 lbs. (without fluorescence)"

Optical System: AIS Infinity Optical System, anti-fungal. Observation Method: Brightfield, Phase Contrast. Viewing Body: Trinocular, inclined 45°; Interpupillary distance: 54-75mm, Siedentopf type; Eyepiece/camera port (standard): 100/0:80/20. Eyepieces: WF10x/22mm field of view focusable eyepieces with roll-down eyeguards; Optional 15x/16mm, 20x/12.5mm. Nosepiece: Side facing quintuple nosepiece. Objectives: LWD Plan chromat 4x, LWD Plan Phase 10x and 20x.
