Newomics, - Model DuoESI -Ion Source Unit

SHARE

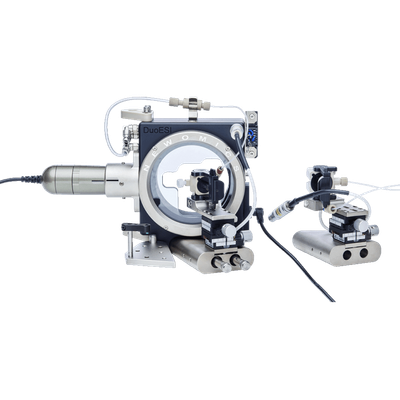

The DuoESI source is powered by our award-winning multispray M3 emitter and breakthrough monolithic MEA chip, to significantly enhance ionization efficiency and achieve high sensitivity, throughput, and robustness for multiomics analysis. Its swappable microflow and nanoflow modules deliver two ion sources (nano/micro) in one, reducing sample preparation and SOPs. It is compatible with mass spectrometers from five of the world’s leading mass spec vendors.

Most popular related searches
round LED light
mass spectrometry
sample preparation
color sensor
spectrometer
  • The first interchangeable microflow and nanoflow ion source by a simple swap
  • Compatible with all mass spectrometers from Thermo, Bruker, Agilent, and Shimadzu
  • Plug-and-play platform for nanoflow and microflow MEA chips
  • Plug-and-play platform for M3 emitters
  • Receive two ion sources for the price of one
  • Ionization Mode : Atmospheric pressure electrospray ionization (ESI), both positive and negative mode.
  • ESI Probe : Newomics M3 Emitter (refer to M3 Emitter and MEA Chip specification)
  • Open or Closed System : Semi-closed source
  • Flow Rate :
    • Nano (20 – 1000 nL/min), for nanoMEA chips
    • Micro (1 – 50 µL/min), for M3 emitters and microMEA chips
  • Spray Angle :
    • Fixed angle of 25° for M3 emitters
    • 0° angle for nanoMEA chips
  • Capillary Voltage : 0 – 6 kV
  • Spray Current : 0 – 10 µA, max. 40µA
  • Sheath Gas Flow Setting : 0 – 30 (arbitrary units)
  • N2 Nebulizer Gas Flow Setting : 0 – 60 psi
  • Auxiliary Gas Flow Setting : 0 – 20 (arbitrary units, optional)
  • Translational Stage : Linear XY-axis manual stage, ±5 mm travel distance, 30 µm travel accuracy
  • Camera : 1.3M pixels, 20x ̶ 90x magnification rate, color CMOS sensor, up to 30 fps frame rate
  • Light Source : Cool white (9000K) 5 mm round LED light, luminous intensity 46400 mcd
  • Connection : Face seal, finger-tight 10-32 threaded fittings including Thermo nanoViper, IDEX MarvelX and MarvelXACT, Waters ZenFit, Phenomenex SecurityLink, VICI Cheminert C360IZR1, and nanoConnect
  • Unit Dimension :
  • Width: 25 cm (9.8 in.)
  • Height: 17.5 cm (6.9 in.)
  • Depth: 15 cm (5.9 in.)
  • Unit Weight : 3 kg (6.6 lbs)
