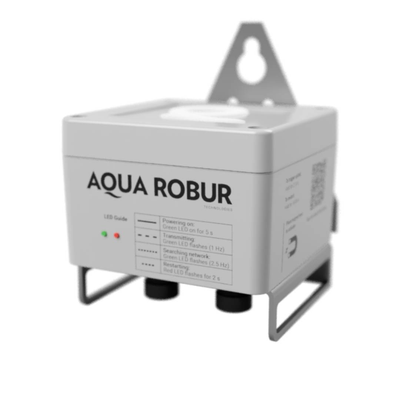

Aqua Robur - Model Fenix Hub X -IoT Device
Fenix Hub X is the next generation IoT device, designed to make data collection even easier, more robust, and more flexible. With NB-IoT/LTE-M connectivity, there is no need for a gateway or investment in additional radio infrastructure. Thanks to smart energy-saving features and optimized notifications, battery life is further extended, providing a reliable solution with minimal maintenance.
The device functions as a multi-sensor node, supporting the connection of multiple sensors in parallel, offering great flexibility and more comprehensive data collection.
The new generation introduces key improvements:
- IP68/IP69K rating for maximum resistance to water, dust, and high-pressure cleaning.
- Fully encapsulated electronics in specially developed silicone for maximum protection against moisture, vibration, and chemicals.
- Increased memory capacity enabling more data logging and greater flexibility.
- Simplified installation concept for quick and efficient commissioning.
- Enhanced battery life for longer operation in the field.
- Manufactured from non-corrosive materials to ensure long service life and operational reliability in harsh environments.
As with previous generations, Fenix Hub X is compatible with multiple sensor protocols and supports a wide range of sensors, including level gauges, rain gauges, and temperature sensors.
Fenix Hub X is engineered to provide water utilities and infrastructure owners with a future-proof platform for measurement, analysis, and decision support – even in the most demanding environments.
Software & Electrical
- Radio technology: NB-IoT or LTE CAT-M1
- Sensor protocols: I2C, Puls, Digital High/Low, Serial (Aqua Robur Radar/ Ultra Sonic), 1-wire
- Sample interval external sensors: Configurable, down to 1 min
- Data transmission interval: Configurable, down to 5 min
- Power supply of external sensors: 3.3 V
- Firmware upgrade: Over radio link/FOTA
- Configuration: Over radio link/COTA
- Notifications: SMS, e-mail
- Batteries: 2 x SAFT 33600, 3.6V. Total energy capacity of 34 Ah | 122 Wh
Mechanical
- Temperature: -20°C to +65°C
- Connections: 3x M12 4-pole female A-coded connector
- Antenna connection: 1x SMA (Antenna included)
- IP Rating: IP68 / IP69K
- Dimensions (W x H x D): 95x120x95 mm
- Enclosure console: Polycarbonate
- Console material: Stainless steel, 316L
- Weight: 0,7 kg
- Certifications: CE, IEC 61010-1, EMC 2014/30/EU, IEC 60529, ISO 21207
