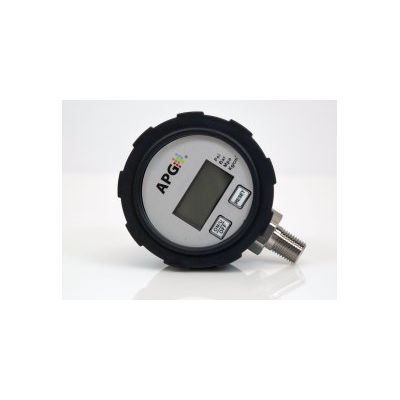

APG - Model Series PG2 -IP65 Digital Pressure Gauges

Long Lasting Performance at a Low Cost
The series PG2 IP65 Digital Pressure Gauge measures gas and liquid pressure with high accuracy at an affordable price. As our basic digital pressure gauge, the PG2 has a weatherproof case, 304L stainless steel wetted material that is compatible with many liquids and gases, and comes with easy to use features and an easy to read display.

• Enclosure Protection: IP65Relays: N/A
• Batteries: 1 3V Lithium (2-3 years)
• Range: 0-5,000 psi
• Lightning Protection?: No
• Certification: N/A

Modbus Output
The RS-485 Modbus RTU output makes the MPX compatible with any Modbus controller or PLC. It also simplifies wiring dramatically.

Tank Cloud Compatible
The MPX liquid level sensor is a Tank Cloud slave sensor, able to communicate via the Internet with the addition of an LOE Master sensor or an RST-5003 module.

Flexible
The MPX-F is designed with ease of use in mind. The 316 SS flexible tubing stem coils for compact shipping, and with the stem weight attached, uncoils easily into your tank, so you no longer need an 40-foot crane to install a 20-foot probe in a 20-foot tank.

• Large, full 4-digit display
• Available ranges from vacuum up to 5,000 psi
• ±0.5% accuracy of full scale up to 1,000 psi
• ±1% accuracy of full scale above 1,000 psi
• User selectable units of measure (psi, bar, MPa, kg/cm2)

Performance:

• Pressure Range
• Up to 5,000 psi
• Accuracy
• ±0.5% of full scale for ranges up to 1,000 psi
• ±1% of full scale for ranges above 1,000 psi

Programming:

• Functions
• Unit Selection, Reset Zero, Display Back Light, Auto-Off

Electrical:

• Batteries
• (1) 3V CR123A Lithium

Physical:

• Housing
• Fiberglass reinforced PP plastic
• Wetted Materials
• 304L SS
• Process Fitting
• 1/4" - 18 NPT

Approvals:

• N/A

Connectivity:

• N/A

Environmental:

• Operating & Compensated Temperature
• 14 to 140° F (-10 to 60° C)
• Enclosure Rating
• IP65
