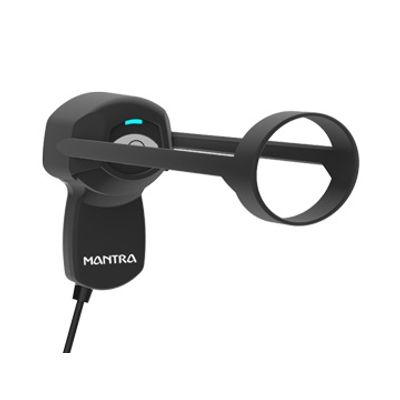

Mantra - Model MIS100V2 -IRIS Scanner
Mantra MIS100V2 IRIS Scanner is a powerful and robust iris scanner, utilized in multiple projects and known for its accuracy and precision.
Mantra MIS100V2 IRIS Scanner can be utilized widely for identity applications like Aadhaar Authentication, Banking Applications and Access Control Applications. MIS100V2 quality algorithm can efficiently identify poor IRIS images that can be adjusted smoothly based on inbuilt LED indications. Our STQC certified iris sensor is comprised of high Resolution CMOS Sensor that creates quality ISO/IEC 19794-6 Images with JPEG2000 compression. MIS100V2 proprietary distance sensing and focus analysis technology gives fast auto capture capabilities.
- Lowest FAR and FRR
- STQC Certified Product.
- Supports Windows, Linux and Android Operating Systems.
- PC/Network security
- Time and attendance
- Skill Development
- UIDAI
- Public application
- PDS
- Health and Medical
- NREGA
Spatial Resolution: 50% 1.0 LP/mm
Pixel Resolution: > 10 pixels/mm
Image Margins Left & right: >=0.6x iris radius
Top & bottom: >=0.2x iris radius
Imaging Wavelength: 700-900 nm
Pixel Depth: 8 bits/pixel
Output Image: KIND1 to KIND7 with JPEG2000 compression
Capture Mode: Auto capture with built-in quality check
Capture time: < 2 Sec
Safety Exempt Group: Per IEC 62471:2006-07
ESD Air: Discharge+-8 KV, contact type+-4Kv
Radiated Emission: FCC part15B/IEC:CISPR 22 CLASS B standard
Radiated Immunity: As per IEC/EN 61000-4 3:2006+A2:2010
Health Safety: RoHS Compliant
Connectivity: USB 2.0 / USB 1.1
Operating System: Support Windows XP, Win7, Win2008, Android, Linux, Embedded Linux
