Model EQJ100 -Jaw Crusher

SHARE

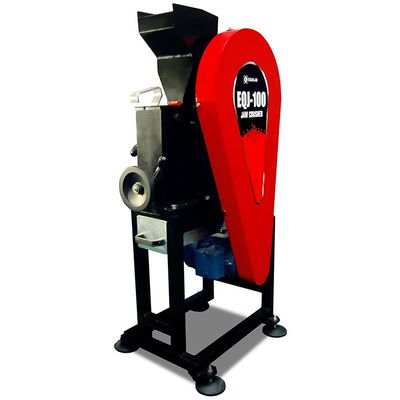

The EQJ-100 Jaw Crusher is a crushing unit specially designed for the primary reduction of semi-hard, hard, brittle and tough materials. Able to quickly and efficiently crush glass, earth, slag, metallic oxides, cements and construction materials, ferroalloys, ceramic materials, minerals and stones. This is a very robust and simple unit, that can accept and reduce samples for years practically maintenance free. All the mobile parts of the unit are especially protected to ensure the safety of the user at all times.

Most popular related searches

Applications: cement industry, metallurgy, thermal power plants, environmental laboratories, material recovery plants, reclycling plants, geology and mineralogy, ceramic industry, other.

Initial grain size: equal or less than 50mm

Final grain size: adjustable to 1 mm

Crushing speed: 230 rpm

Engine power: 1100W

Power supply: 3 x 380V + earth

Jaws: manganese steel

Dimensions: 122.5 cm (high) x 50 cm (long) x 61 cm (wide)

Approximate weight: 185 kg
