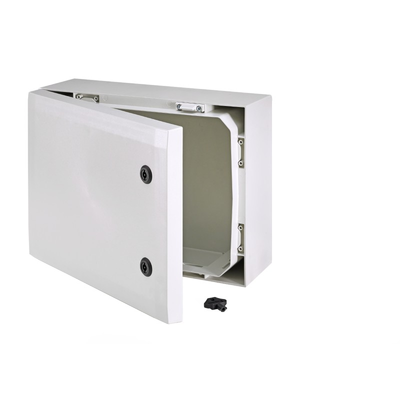

Fibox - Model ARCA 507030 No-MP -Junction Box

• Part #: 8120031N
• Dimensions: 19.68 x 27.55 x 11.81
• Ratings: UL Type NEMA 1, 4, 4X, 12 and 13:IP66;IK10

Product

• Product nr: 8120031N
• Description: Opaque hinged bit locking enclosure
• Remarks: Grey cover, 2-point locking, hinges on the short side
• Package: 1
• Unit: Piece
• EAN: 6418074089458
• ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions

• Height (inch): 19.69
• Width (inch): 27.56
• Depth (inch): 12.2
• Height (mm): 500
• Width (mm): 700
• Depth (mm): 300

Materials

• Material: Polycarbonate
• Base color: RAL 7035 -light grey
• Cover color: RAL 7035 -light grey
• Gasket material: Polyurethane (PUR)

Temperatures

• Temperature °F (continuous):  -40 … 175
• Temperature °C (continuous): -40 … 80

Ratings

• UL/cUL Type: UL/cUL 1, 4, 4X, 12 and 13
• UL 1741     Compliant
• Ingress Protection (EN 60529): IP66
• Impact Resistance (EN 62262): IK10
• Electrical insulation: Totally Insulated
• Halogen free (DIN/VDE 0472, Part 815): Yes
• UV resistance: UL 508
• Flammability Rating: UL94-5VA (f1)
• Glow Wire Test (IEC 60695): 960 °C
