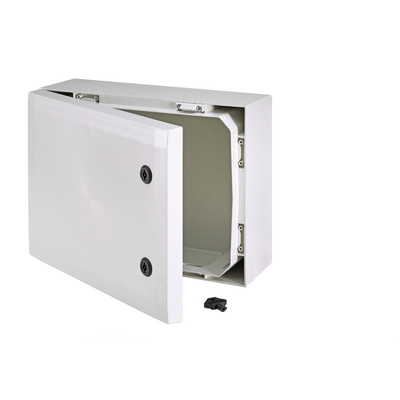

Fibox - Model ARCA 304015 No-MP -Junction Box

• Part #:8120022N
• Dimensions:11.81 x 15.78 x 6.22
• Ratings:UL Type UL / cUL NEMA Type 1, 4, 4X, 12 and 13:IP66;IK10

Product

• Product nr: 8120022N
• Description: Opaque hinged bit locking enclosure
• Remarks: Grey cover, 2-point locking, hinges on the short side
• Package: 1
• Unit: Piece
• EAN: 6418074089410
• ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions

• Height (inch): 11.81
• Width (inch): 15.75
• Depth (inch): 6.22
• Height (mm): 300
• Width (mm): 400
• Depth (mm): 150

Materials

• Material: Polycarbonate
• Base color: RAL 7035 -light grey
• Cover color: RAL 7035 -light grey
• Gasket material: Polyurethane (PUR)

Temperatures

• Temperature °F (continuous):  -40 … 175
• Temperature °C (continuous): -40 … 80

Ratings

• UL/cUL Type: UL / cUL UL/cUL Type 1, 4, 4X, 12 and 13
• UL 1741     Compliant
• Ingress Protection (EN 60529): IP66
• Impact Resistance (EN 62262): IK10
• Electrical insulation: Totally Insulated
• Halogen free (DIN/VDE 0472, Part 815): Yes
• UV resistance: UL 508
• Flammability Rating: UL94-5VA (f1)
• Glow Wire Test (IEC 60695): 960 °C
