Fibox Enclosures
Fibox -Â Model ARCA 302015 No-MP -Junction Box
FromFibox Enclosures
Including: Cabinet enclosure with PUR gasket. 3mm double bit lock(s) with key, screws for mounting, and door guide.
Most popular related searches
- Part #: 8120002N
- Dimensions: 11.81 x 7.87 x 5.9
- Ratings: UL Type 1, 4, 4X, 12 and 13:IP66;IK10
Product
- Product nr: 8120002N

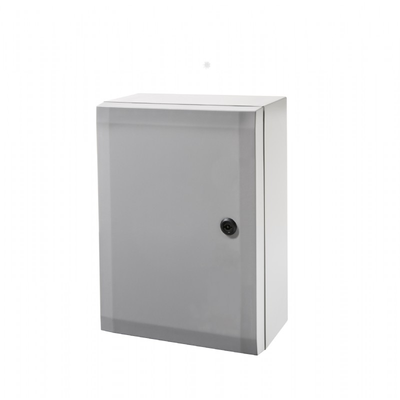

- Description: Opaque hinged bit locking enclosure
- Remarks: Grey cover, 1-point locking, hinges on the long side
- Package: 1
- Unit: Piece
- EAN: 6418074089335
- ETIM: EC000261 Enclosure/Switchgear cabinet (empty)
Dimensions
- Height (inch): 11.81
- Width (inch): 7.87
- Depth (inch): 5.9
- Height (mm): 300
- Width (mm): 200
- Depth (mm): 150
Materials
- Material: Polycarbonate
- Base color: RAL 7035 -light grey
- Cover color: RAL 7035 -light grey
- Gasket material: Polyurethane (PUR)
Temperatures
- Temperature °F (continuous): -40 … 175
- Temperature °C (continuous): -40 … 80
Ratings
- UL/cUL Type: 1, 4, 4X, 12 and 13
- UL 1741 Compliant
- Ingress Protection (EN 60529): IP66
- Impact Resistance (EN 62262): IK10
- Electrical insulation: Totally Insulated
- Halogen free (DIN/VDE 0472, Part 815): Yes
- UV resistance: UL 508
- Flammability Rating: UL94-5VA (f1)
- Glow Wire Test (IEC 60695): 960 °C
