Fibox - Model ARCA 608030 No-MP -Junction Boxe

• Part #:8120029N
• Dimensions:23.62 x 31.49 x 11.81
• Ratings:UL Type 1, 4, 4X, 12 and 13::IP66;IK10

Product

• Product nr: 8120029N

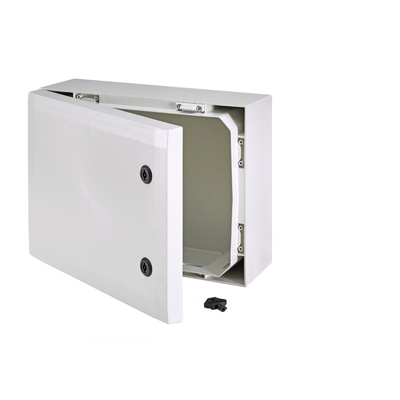

• Description: Opaque hinged bit locking enclosure
• Remarks: Grey cover, 2-point locking, hinges on the short side
• Package: 1
• Unit: Piece
• EAN: 6418074089465
• ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions

• Height (inch): 26.62
• Width (inch): 31.5
• Depth (inch): 12.2
• Height (mm): 600
• Width (mm): 800
• Depth (mm): 300

Materials

• Material: Polycarbonate
• Base color: RAL 7035 -light grey
• Cover color: RAL 7035 -light grey
• Gasket material: Polyurethane (PUR)
• Temperatures
• Temperature °F (continuous):  -40 … 175
• Temperature °C (continuous): -40 … 80

Ratings

• UL/cUL Type: 1, 4, 4X, 12 and 13:
• UL 1741     Compliant
• Ingress Protection (EN 60529): IP66
• Impact Resistance (EN 62262): IK10
• Electrical insulation: Totally Insulated
• Halogen free (DIN/VDE 0472, Part 815): Yes
• UV resistance: UL 508
• Flammability Rating: UL94-5VA (f1)
• Glow Wire Test (IEC 60695): 960 °C
