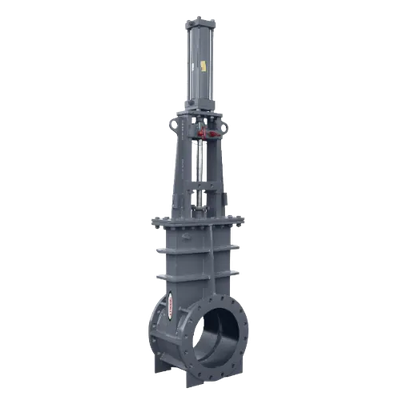

Townley - Model 150 Series -Knife Gate Valve

The CAD/CAM designed and CNC plasma-cut components are robot welded and pressure tested to ensure a long reliable life. The cast stainless steel double taper blade ensures a positive open and closes every cycle.

The tapered blade mates to a matching Towniprene urethane seat, that has been chemically bonded to the metal body. Also, the series 150 incorporates opposing high-chrome cast inserts to absorb the constant coarse feed 24/7 with operating temperatures at 165F or lower.

• The heavy-duty fabricated body resists mechanical and pressure-induced damage
• Flange-style body for improved strength
• Custom “face to face” dimension upon request
• Variety of materials to match application
• Towniprene® urethane-lined seat high-chrome inserts
• Heavy-duty blade cuts through media
• Tapered edges and blade body assures easy opening without binding
• Combine stainless steel blade with Towniprene® urethane-lined seat and body for excellent corrosion resistance
• Features standard 150 PSI rating with higher service rating upon request
• 150# drilling standard, custom drilling by request
• Optional mechanical lockout for safety
• Bi-directional flow
• Hand-wheel standard adaptable to existing actuation or new
• 4″ through 24″ full port IDs, others available on request
• The used valve can be fully rebuilt at our factory
• The bonneted design allows simplified sealing of shaft only

Designed for isolation or diversion in a variety of circuits. This valve is an excellent choice for flow management of abrasive slurry.

• Power plant “bottom ash”
• Phosphate matrix and tailings
• limestone slurry
• Sand and Gravel
• Metallurgical coal prep
• Hyrdotransport of oil sands
