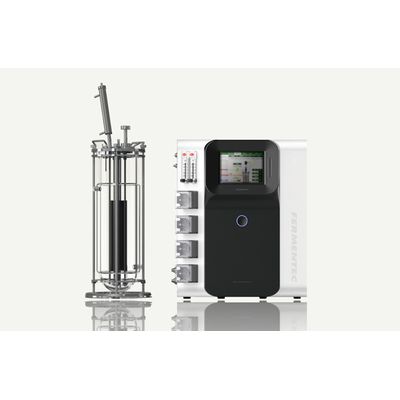

- Air-lift type bioreactor in double shell structure
- Aeration system (L/D) in various types
- An 8.4" touch screen computer with HMI that can be conveniently operated
- PLC adopted as a main control system
- Loaded with an interlocking control program to enable the cultivation of various conditions
DO interlocking function
FEED interlocking function - dissolved oxygen, supply time
PH interlocking function - feed rate, dissolved oxygen - A controller whose reliability can be guaranteed has been adopted
- Cylinder borosilicate vessel (Pyrex glass)
- Various nozzles made with precisely processed STS 316L and parts guarantee the highest level of confidence
- Elegant design considered for easy repair and cleaning
- Aeration based circulation minimizes shear stress
- Double shell vessel perfect for cell culture: precisely controls temperature
- Various L/D
- Autoclavable double shell borosilicate glass vessel
- 3~14L total volume
- Electro polished STS316L head plate & bottom plate
- Nozzles
-Inoculum port : Flaming (optional : Septum nozzle or aseptic inoculation valve)
-Temperature, pH, DO, foam sensor (option : ORP, level, OD sensor)
-Exhaust & condenser
-4 media feeds
-Sampling & harvest (optional : Aseptic transfer valve) - Aeration
-1~10? micro sparger
-0.2? disposable hydrophobic filter with check valve - Removable addition bottles support
-Peristaltic pump with tubing - Gas flow
-2 gas control rotameters (option : 4 rotameters or 1 ~ 4 mass flow controller)
-Flow rate
0.3~3 L/min
0.5~5 L/min
0.7~7 L/min
1~10 L/min
1.4~14 L/min
- 8.4" or 17" touch screen computer
- 1 to 12 vessels intelligent control
- 16 control loop per vessel
- Temperature control : heating/cooling (option : water chiller)
- pH control : acid/base agent feeding control
- DO control : fed-batch control by time, DO, pH
- 4 pump control : acid, base, anti-foam, feeding easily calibrated pump
- Flow control (option) : 1~4 mass flow control
- 8 multi trend log data per vessel
- Easily calibrated sensors
