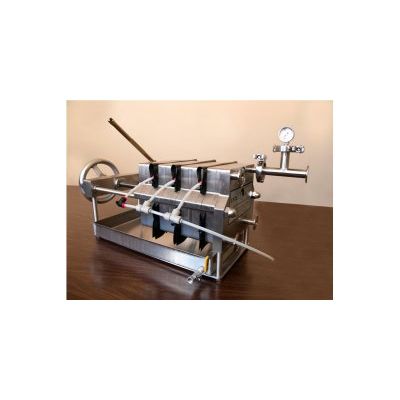

Model EA 102 & EA 203 Series -Laboratory Filter Press
EA 102 & 203 Laboratory Filter Presses are among the most efficient and cost effective means of liquid/solid separation through pressure filtration. EA Lab presses provide a simple reliable method of high compaction pressure to compress and dewater solids concentration. This provides clearer filtrate solutions than systems that only remove free water. This series of filters is designed for the laboratory, new product and process development, testing, scale-up and small volume production of products. Cloth or paper changeover can be accomplished easily and in a minimum of time. Even more versatility can result from the use of dividing heads to provide double or even triple serial filtration in a single pass.
- Stainless Steel Skeleton
- Polypr opylene Plates
- Stainless Steel Tri-Clamp or NPT head connections
- 3 Cor ner Discharge Porting
- Flush Plate and Frames
- 32mm Cake Thickness
- Manual Hydraulic Closur e System
- Stainless Steel feed pr essure gauge
- Stainless Steel drip pan
- Full Six Year Framework Warranty
- Alter nating Discharge (1B & 3B)
Optional Features
- Caulk & Gasketed Recessed Polypr opylene Plates
- Stainless Steel Plates
- Membrane/Squeeze Plates
- Uniform Fill Manifold
- Feed Pumps: Air Operated Diaphragm (AOD)
- Automatic Pump Contr oller
- Blanking Plate
- Thor ough Wash Capability
- Expansion Capability
- Cake Thickness fr om 20-50 mm
- Wide Selection of Filter Media
- Cake W ashing
- Industrial W astewater
- Envir onmental Remediation
- Metals and Mining
- Petr ochemical
- Pulp and Paper
- Food and Beverage
- Biodiesel Dry W ash Separation
- Ethanol Filtration
Product testing is always available either at your facility , through our network of distributors, or at our in-house laboratory.
Pilot Testing - Rentals
For in-plant testing and scale-up pr ocedures, ErtelAlsop offers a variety of lab filters for r ent. A portion of r ental fees can be applied to the pur chase of your full production filter.
