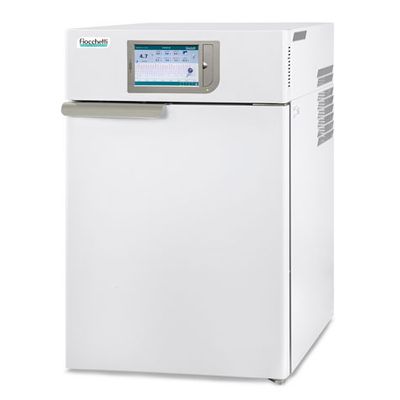

Fiocchetti - Model LAB0102 -Laboratory Freezer
The VISION 400 TOUCH is a laboratory freezer specifically designed for pharmacies, laboratories, and hospitals to store drugs, vaccines, and celiac disease products. It features a triple glass panel hinged door with an ergonomic aluminum handle and offers a capacity of 347 liters. The freezer is equipped with advanced thermal performance and adaptive defrosting to prevent ice formation. Its electronic controller is a 7-inch full touch screen microprocessor that provides accurate temperature monitoring and alarm recording. The VISION 400 TOUCH is compliant with international standards and equipped with connectivity features such as an integrated Web Server for LAN and MODBUS TCP/IP network connection. Additional options include an electronic lock, GSM and Wi-Fi modules, and local and cloud monitoring systems. The refrigeration system uses R290 refrigerant gas, and the device operates with energy efficiency, consuming 5 kWh/24h.
Small professional undercounter refrigerator, Touchscreen, solid door type and featuring data recording. The equipment is certified as Medical Device Risk Class I, and complies with EU Regulation 2017/745 and subsequent amendments and additions.
- +2 / +15°C Temperature range
- 126 lt (4.45 cu ft) Capacity
- 52 x 63,5 x 81,5 cm External dimensions (WxDxH)
- TOUCH Electronic Controller
Undercounter refrigerator for drugs and vaccines, with touchscreen display, solid door type and temperatures data recording
Laboratory refrigerators series LABOR feature a clean and functional design, with solid door, and adjustable compartments to enhance product storage.
They have been design specifically for the use in laboratories, hospital wards and pharma industries: LABOR refrigeratorscomply with international standards in force and answer to the most various requirements, thanks to the vast choice of volume capacities and to the chance of customizing the internal fittings.
The solid door guarantees an improved thermal perfomance, while the ergonomic aluminium handle guarantees a safe and correct grip. The gasket is magnetic type sealing on all four sides, the automatic lock features a return spring, door stop at 90°, the opening side is reversible
- Inner dimensions: 44 x 51,6 x 42,1 cm
- Nominal capacity: 100 l (3,53 cu ft)
- Net capacity : 96 l (3,40 cu ft)
- Insulation type: Insulation in PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.
- Insulation thickness: 40 mm.
- Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners. Nr 4 feet H=1,5 cm grant the maximum stability.
- Interior lightning: Full LED, all lenght of inner chamber, with adjustable brightness
- Refrigeration type: Professional ventilated
- Defrost type: Automatic, adaptive, with vaporization of condensate water
- Power consumption reduction with function Night & Day
7" FULL TOUCH SCREEN ELECTRONIC CONTROLLER
Microprocessor controller with FULL TOUCH SCREEN 7" interface for displaying all the dynamic values of the refrigerator, with 0.1°C resolution and ±0.3°C accuracy.
As standard, it includes temperature and alarm recording and it simultaneously displays multi-trace real-time graph, current temperature and set-point (editable), alarm limits (editable), energy consumption and battery status(optional).
Door with 3 slots for: SD card with data history, USB port for system download and update, SIM card slot (for GSM module , as optional).
Further features: integrated Web Server for LAN (RJ45) and MODBUS TCP/IP network connection, anti-freeze and anti-overheating safety device, and dry contact for remote alarm signal
Additional accessories, which can also be installed separately, are: electronic lock, acoustic and visual alarm for power failure, DMLP TOUCH module for independent recording of temperatures, GSM and Wi-Fi modules, external terminal board, and possibility of add local and cloud monitoring systems .
Acoustic and visual alarms, silenceable, for any anomaly condition, with automatic recording.
- Refrigerant gas type: R290
- Energy consumption: 0,5 kWh/24h
- Power absorption/current: kW 0,14 / Amp 0,9
- Inrush current: Amp 2,5
- Noise level: <40 dBA
- Heat rejection/emission EN 12900: W 20
- Shelves max nr.: 2
- Wire shelves dimensions: cm 40x49
- Drawers max nr.: 3
- Inner dimensios of drawers with dividers (LxPxH) (each compartment): cm 10x45x7,5 (3)
- Inner dimensios of drawers without dividers (LxPxH): cm 33x45x7,5
