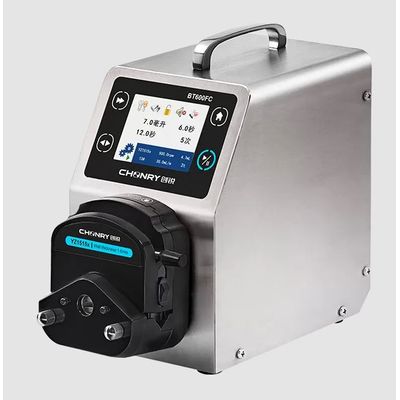

Chonry - Model BT600FC -Laboratory Peristaltic Pump

BT600FC is a type of Laboratory Peristaltic Pump, which adopts a 3.5-inch LCD to display the flow rate and speed parameter. The membrane keypad is easy to operate. The stainless steel all-inclusive design is strong and Durable It can store 9 sets of filling data, realizing fast filling.  The BT600FC peristaltic dosing pumping provides manual, remote analog or RS485/MODBUS communication protocol control.

• LCD touch:3.5-inch color LCD, Chinese, and English Display, touch screen control.
• Flow calibration: With the flow calibration function, it is suitable for transferring liquids with higher precision
• Data storage: 9 sets of data can be stored for users
• Two working modes:   transmission and distribution, can perform repeated timing and quantitative filling.
• Acceptable pump heads: YZ, DG, and TX series pump heads can be installed, and Pump heads can be cascaded.
• Support external control: Support RS485/MODBUS communication protocol, analog control, foot switch control

• Food industry
• Laboratory research institute
• Filling and dispensing
• Medical equipment

• Drive model: BT600FC
• Max Speed: 600rpm(reversible)
• Speed resolution: 0.1rpm
• Power: <50W
• Max flow: 2280mL/min
• Display method: LCD(EN and CN)
• Speed mode: Touch screen + keypad
• Timing range: 0.1s-9999min
• Quantitative range: 0.001mL-9999L
• Drive size: 212*142*238mm
• Power supply: AC220±10% (standard) or AC110V±10% (optional)
• External control method:
• Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication
