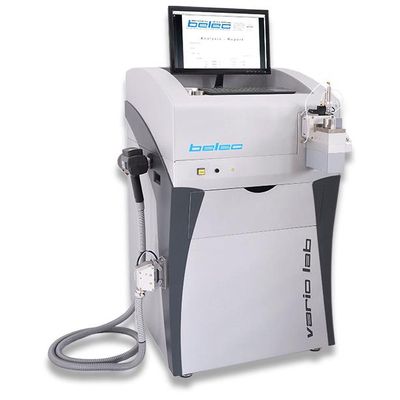

Belec - Model Vario Lab -Laboratory Spectrometer
Belec has entirely re-designed the well established laboratory spectrometer. The Belec Vario Lab again sets a unique standard in terms of precision and flexibility as it has been continuously improved in order to fulfill today’s needs for metal analysis. It is – again- the most competitive in terms of flexibility as far as sample size and shape is concerned. Next to the fixed sparking stand it can be equipped with an additional sparking probe.
Most popular related searches
laboratory spectrometer
rotary vacuum pump
gas purification system
spectrometer
oil separation
optical spectrometer
gas purification
metal analysis
vacuum pump
vacuum pump oil
- highest analysis accuracy and precision
- maximum long term stability
- low detection limits
- virtually no limitations in terms of sample size and shape
- robust laboratory spectrometer
- flexibility through manifold equipping options
- free accessible sparking stand for larger samples
- operator friendly Analysis Program Belec Win21
- integrated dynamic alloy database
- base specific drift correction samples included
- installation and instruction by qualified personnel
- very low operating costs
Optic
- spectrometer in Paschen-Runge mounting
- Rowland circle diameter 500 mm
- usable wavelengths 120-430 nm
- grating 3600 lines/mm
- reciprocal dispersion 0,52 nm/mm (1st order)
- shock resistance
- photomultiplier detector systems are ±0.1°C temperature stabilised for excellent long-term stability
- optionally 2nd spectrometer optics*
- up to 11 bases and 108 measuring channels possible
- inert gas-breathed optical chamber with gas purifier system
- optional optic with usable wavelengths up to 800 nm*
Vacuum System*
- 2 stage rotary vacuum pump
- large oil separator
- oil vapor trap
- vacuum gauge in front panel
Source
- sparking generator with maximum 400 Hz frequency
- unipolar discharge
- separate parameter for pre-sparking and integration selectable via software
- ignition frequency program specifically selectable via software
- discharge power program specifically selectable via software
- arc source for air probe, optional
- ignition voltage 20 kV
Measuring Stand
- argon-flushed measuring stand for exact analysis
- sparking stand grounded with Ø 10 mm analysis opening
- optional ceramic disc with Ø 4mm opening*
- adapters for wires, pipes and small parts are available
- low-wear tungsten electrode
- pneumatic sample clamping
- argon flow 0,1 l/min in stand-by mode and 2 l/min during analysis
- low maintenance required
Electronics (Model 2P)
- stabilized high voltage
- zero-stabilized analogue amplifier
- 6-decade dynamic A-D converter for each channel
- 48 channels with digital integration, configurable for several bases
Electronics (Model 2C)
- 15 detectors, each with 3648 pixel, 7µ pixel width
- individual AD- converter board for each detector, mounted on multi channel board,
coupled by high-speed port - Integrated noise suppression - integrated background compensation
- Unlimited numbers of measuring channels, configurable for several base
Probes
- argon-flushed sparking probe for exact analysis, including carbon
- argon flow 0,1 l / min in standby and 2,5 l / min during analysis
- argon control on cable plug
- air probe for quick mix-up checking
- adapters for wires, pipes and small parts available for all probes
- lightweight shockproof plastic probe housing
- start and clear buttons easily hand-operated
- signal on mix-up identification: visual display for “repeat” and “reject”, start button is blocked until confirm
button is pressed - multi fibre quartz optics, standard lengths 3m or 5m
- low-wear tungsten electrode
- silver electrode for air probe
- probe connector system
Dimensions and Weight
- width 680 mm
- height 1135 mm
- depth 945 mm
- analysis unit 80 kg
Power Supply
- 230V/50Hz or 110V/60Hz
- 100 W in stand-by mode
- 600 W during analysis
with optional vacuum system - 600 W in stand-by mode
- 1100 W during analysis
Computer Hardware
- System-integrated industrial computer system with Intel© ATOM® dual core D525 (1.8 GHz, 64 Bit) processor
- Random access memory 4 GB DDR3 SD RAM
- Hard disk 250GB SATA SSD.M2 (Solid-State-Drive)
- Intel© Onboard graphic with VGA output
- 18,5” widescreen colour monitor, other monitors available
- Complete external keyboard with touch pad
- USB 2.0 port
- Ethernet interface RJ 45, 1 Gigabit Ethernet Controller
- Serial interface
- Operation system MS Windows© 10 Enterprise LTSC with client specific regional and language settings
- Remote-Service-System (RSS) by Teamviewer©
