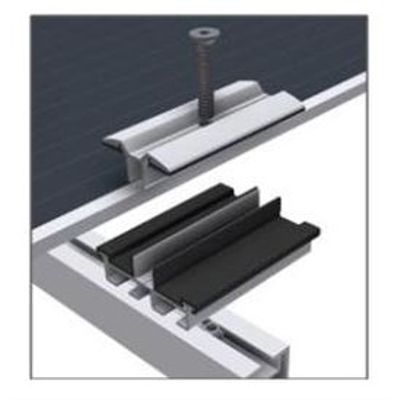

Inteo Clamp - Laminate Modules
Laminate modules behave like glass panels inserted in buildings. Only when the correct technology is utilised for their installation that their safety and long-term durability is guaranteed. Soltecture has developed a safety clamp that makes the deployment of laminate modules more secure and reliable than conventional clamps: Soltecture relies on maximum quality and innovative design.
-
The support rail engaged on the lower side supports the module even with loads greater than 2,400 Pa and prevents the edges from being crushed
-
Uses silicon-based rubber lips
-
Classified as "non-combustible" in accordance with UL94-V0
-
If glass is damaged, the highly insulating plastic prevents residual current from flowing between the frame and module
Soltecture’s laminate clamp resulted from the company`s own proprietary research and development. Numerous systematic test series and simulation calculations based on the finite element method were necessary and have made the clamp the optimum fixing system for laminate modules.
Soltecture’s Inteo Clamp meets the highest safety requirements required in buildings. The silicon used is non-combustible in accordance with UL94-VO. In comparison with conventional clamps, which mostly use EPDM plastic, the dielectric strength is also significantly increased. Above all, the clamp provides ideal stabilisation for modules on roofs with high snow and wind loads. The Inteo Clamp therefore provides a core element in intelligent solutions for solar construction, an area in which Soltecture has considerable expertise.
