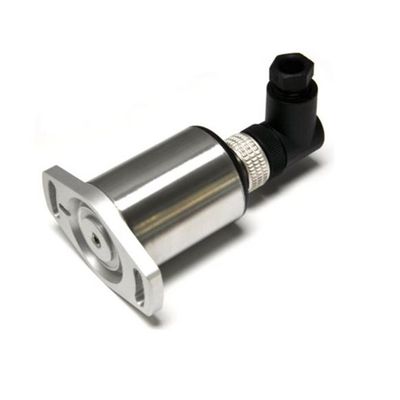

Model P603 -Large Angle Tilt Sensor

The P603  is an affordable, durable, high-accuracy tilt sensor designed for industrial and scientific feedback applications. The P603, like all Positek sensors, is supplied with the output calibrated to the angle required by the customer, between 15 and 160 degrees. The sensor provides a linear output characteristic with angle of deflection. There is a machined registration mark to identify the calibrated mid point. It is particularly suitable for OEMs seeking good sensor performance for arduous applications such as industrial machinery where cost is important. Overall performance, repeatability and stability are outstanding over a wide temperature range. Electrical connections to the sensor are made via an industrial standard 4-pin M12 connector, with limited rotational capability to facilitate cable routing.
