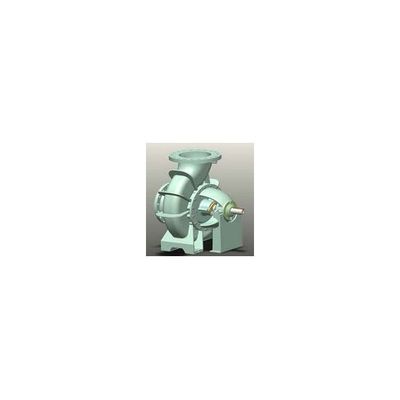

Pumpsense - Model ESL -Large End Suction Pumps

Type: Single Stage End Suction Back Pull-out Pumps. Size Range: 200mm(8") to 450mm(18") discharge nominal bore. Capacity: upto 3000m3/hr. Head: upto 180m. Speed: upto 2300rpm. Construction: Single / double volute depending on head range. Packed gland / mechanical seal version. Many bearings and bearing lubrication options. CW / CCW rotation. Special suction branch orientation options.
