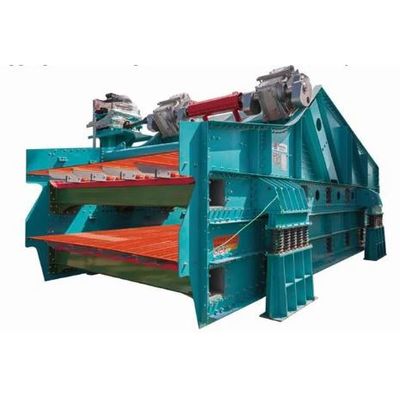

Landsky - Large Scale Double-Deck Linear Vibrating Screen
Landsky has been focusing on research, development and manufacture of vibrating and classifying equipment for mineral industry. In accordance with design of maintenance-free, high reliability and high vibrating strength, LKLB series are Integrated with advanced screening technology and manufacturing process from Germany, and suitable for all kinds of harsh conditions in fields such as metallurgy, coal, nonferrous metal, construction material, chemical industry and so on, The service life of main parts can be over ten years, and screen width can be up to 5.1 meters (widest in the world).
As vibration source, the exciters are installed on exciter beam of screen box. While ore material going onto screen deck, the whole vibrating system consist of material and screen box supported by coil springs Eccentric blocks with?1ua1 mass are respectively?stalled on two axles of exciter, and supported by two bearings. Shaft Is driven to rotate by the force from motor driver, and eccentric mass on two axles are rotating reversely through a pair of helical gears trans-milting in the middle. The centrifugal force sometimes superposes and offsets, which makes the vibration system into reciprocating linear vibration, with maxi-mal amplitude up to 16mm.
One typical site installation for the reference:
Client: Ma Steel
Banana screen model: LKLB3661
Capacity: 350t/h
Application: wet screening after HPGR
Aperture size: 5mm
