Atlas - Model 1200 SL WS P - Large ...

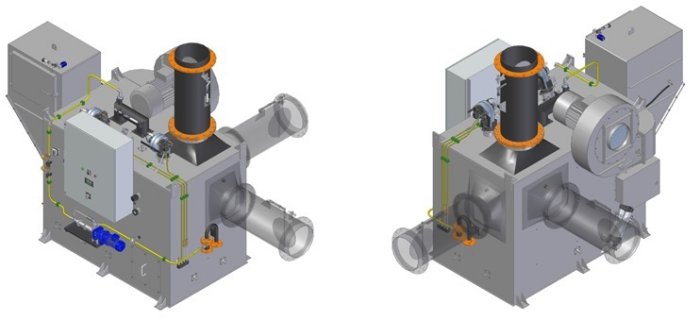

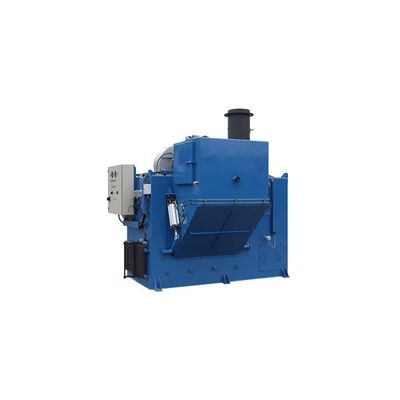

Atlas - Model 1200 SL WS P -Large Solid and Liquid Waste Incinerator

FromAtlas Incinerators ApS

SHARE

The 1200 SL (B/XL) WS P is a large incinerator for burning solid and liquid waste, available with a 30L, 70L or 120L (waste bag) sluice size, and suitable for bigger merchant vessels.

Most popular related searches

liquid waste incineration

solid waste incineration

sludge oil incineration

large incinerator

waste incineration

large liquid waste incineration

large solid waste incineration

Combustion Capacity (kW) : 1163
Combustion Capacity (kcal/h) : 1.000.000
Combustion Capacity Solid Waste (IMO waste specification) : 230 kg/h max. 920 kg/24 hours
Combustion Capacity Liquid Waste (IMO standard is 20% water content) :

100 l/h at 0% water content
135 l/h at 20% water content
200 l/h at 50% water content

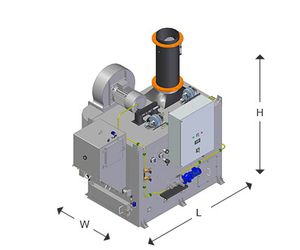

1200 SL WS P
W: 2127mm
L: 3332mm
H: 2952mm
1200 SL B WS P
W: 2127mm
L: 3541mm
H: 2952mm
1200 SL XL WS P
W: 2668mm
L: 3048mm
H: 2952mm

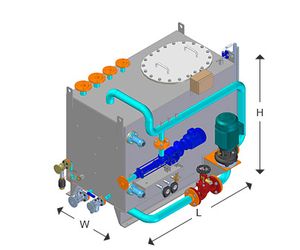

4000 SP
- W: 1490mm
- L: 2302mm
- H: 1670mm

Induced draught air ejector for evacuation of flue gasses; hence Flue Gas Fan is not required
Settling tank not necessary
Burning oil sludge with up to 50% water without pilot fuel
Three chambered design - clean burn
Atlas designed sludge burner with no rotating parts
Simultaneous burning of sludge oil and solid waste
