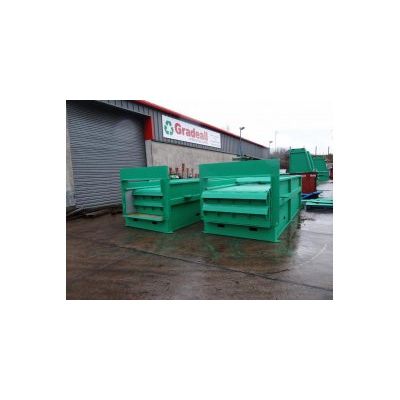

Gradeall - Model G120 -Largest Static Compactor

The G120 uses a single, yet extremely durable centrally mounted ram to push the compacting head, to compact waste materials into the container. The benefit of the single ram is simplicity and exceptional compaction force being developed exactly where needed.

As with all Static compactors in the range a wide selection of optional extras are available; both from a stock collection of existing options, also on offer is bespoke custom designed add-ons to suit customer requirement. These include deck-loading systems incorporating handrails to integrate with an existing site structure, hoppers, chute feed systems, dual purpose manual and bin lift hoppers, and unique control systems.

All Gradeall compactors are designed to work with CHEM complaint containers, either supplied by another manufacturer, or using Gradeall produced CHEM compliant Containers available in sizes ranging from 15 to 30 cubic yard capacity.

Available G120 Options

The G120 is available with the multitude of options available on all Static Compactors, below shows a small number of options as specified for use on our G120 Compactor, in addition to large items such as bin lifts and hoppers a range of other options are available such as SMS Monitoring, Keypad Code Entry Systems, and software configurations are available to develop the static compactor to deliver the best solution for the customers requirements. The options shown below are available across the range.

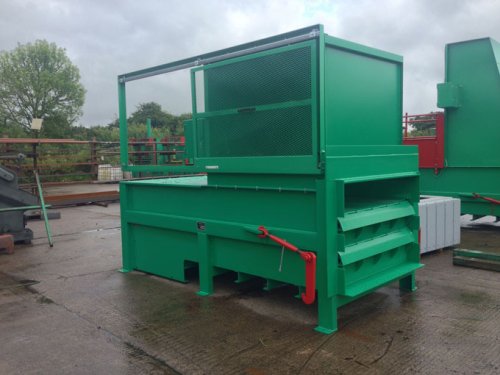

Sliding Door Hopper

A useful security feature which allows the compactor to be fully closed preventing entry of all objects into the loading area making it ideal for use in council applications, the sliding door moves smoothly thanks to Nylon rollers and has latching clasps to hold it in the open and closed positions with the closed position being lockable. Magnetic switches are also fitted for maximum safety ensuring that the compactor will not start working until the door has been closed, below shows some pictures of the Sliding Door Hopper attached to the G120, a variety of colours are available upon customer request.

Open Top Hopper

The Open Topped hopper is suitable for applications where large bulky waste needs to be entered into the compactor with minimum obstruction, particularly popular in applications where items of furniture may need to be compacted, the open top hopper caters for safety with a double emergency stop setup which means that the machine stops instantly when either button is pressed. The Pictures below show an open top hopper installed on a council amenity site, the modular hopper design allows the same hopper to be turned around so that it can permit Left or Right hand sided loading.

Bin Lifts

The full ranges of bin lifts are available for the G120 (See Bin Lift Range). After discussions with Gradeall’s sales team us they will be able to suggest the most suitable hopper and safety cage to accompany the Bin Lift. This is to ensure the best use of available space, maximise safety and make the bin lift as easy to use as possible. Below shows examples of bin lifts fitted to the G120 compactor.

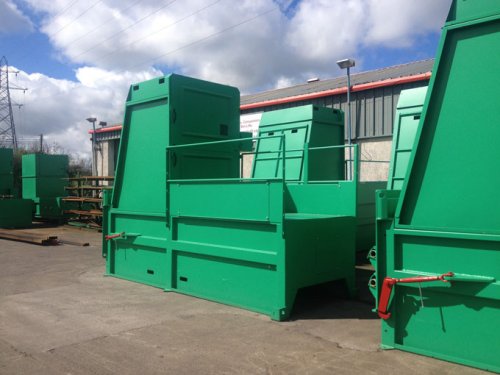

Trunnion Bin Lift

A G120 Fitted with a Trunnion Lift (Lifts the Bin by the side mounted Trunnions) along with the associated safety cage and hopper:

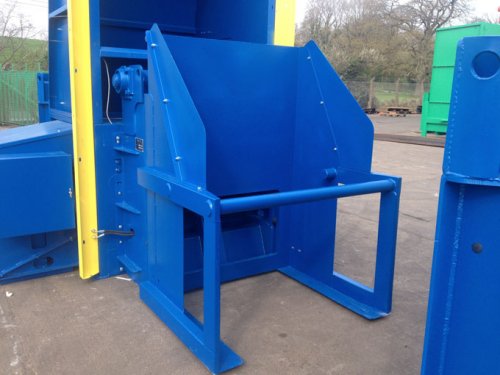

Forklift Pallet Bin Lift

A Bin Lift Designed to Lift Plastic Fork Lift Pallets (Dolav Type) includes hopper to suit bin lift and Safety Cage, which is removed in the pictures, the safety cages are a bolt together design for reduced transport costs:

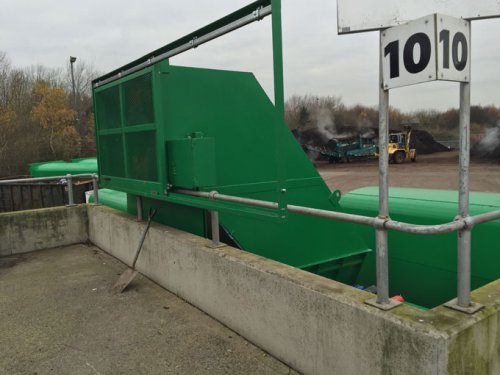

Deck Loading Hoppers

Hoppers designed for use in a council Amenity site, these come equipped with Checkered Walkways, side fence incorporating hand rails, and a hopper with half split doors for easy deck loading of waste materials. Also included are relocated controls for ease of use, and magnetic safety interlock switches for increased levels of safety.

Bespoke Feed Arrangements

The full range of Custom Build Options are available on the G120, if its a unique hopper design, bin lift or chassis Gradeall are willing to help, below shows a bespoke Hopper designed to suit the council run ammenity site where the compactor chassis and container are positioned on the ground and the Material is fed in at a raised level:

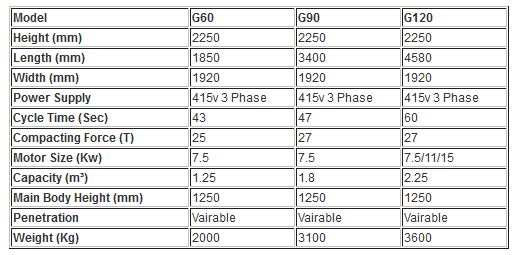

Gradeall Static Compactor Comparison

The Gradeall range of Static compactor systems are designed to meet Customer requirements and are available in 3 different Chassis, the table below compares specifications*:
